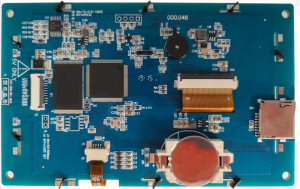

4.3 Inch 480272 LCD Module
Proculus Technologies is the leading LCD screen suppliers in the industry of embedded devices, focusing on All-in-one TFT LCDs including UARTs and Android Solutions. As a custom LCD and screen display manufacturer, Proculus can provide you the custom LCD display, screen, and panel according to your demand. Now, we are focusing on exploring the world market and eager to provide the great products and services for the customer from all over the world. Proculus makes a complete and ever-improving LCD display solution for Intelligent displays that makes GUI development simple, cost-effective, and fast. Do not hurry to purchase the LCD products before contact Proculus. It provide lcd screen module, tft display monitor, lcm android, usb lcd display module and so on.
Features of 4.3 Inch LCD 480x272 Module
Support wide range of power supply:Default is 6~35V, use jumper to choose 4.5~5.5V;
Support RS232/TTL/CMOS, the max baud rate is 921600bps;
Support audio and video;
Support hardware JPG decoding which makes storage more efficient and display quicker;
Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;
Support backlight brightness adjustment and automatic standby screen saver function;
Support multi-language font library, picture, TWO-DIMENSIONAL code display;
Support number and English input, customizable keyboard interface;
Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;
Easy-to-use UnicView GUIs Development, no coding skills required;
Instant operation when power on without system load time;
Excellent electromagnetic compatibility characteristics.
Specifications of 4.3 inch touch screen 480*272 LCD Module
Display |
|||||||
Color |
65K (65536) colors,16 bit color 5R6G5B |
||||||
ACTIVE AREA / View Area |
95.0mm(width)×53.9mm(height)/97.5 mm(width)×56.4 mm(height) |
||||||
Resolution |
480*272,90° rotated display (272*480) |
||||||
Backlight /Lifecycle/Brightness |
LED/20,000 HOURS/ 250 cd/m²/(64 level adjustment) |
||||||
Working Temperature |
-20~+70℃/-30~+85℃ |
||||||
Voltage & Current |
|||||||
Item |
Condition |
Min. |
Typ. |
Max. |
Unit |
||
Power Voltage |
|
- |
5.0 |
5.5 |
V |
||
Operation Current |
VIN = 5V, Backlight on |
- |
450 |
- |
mA |
||
|
VIN = 5V, Backlight off |
- |
260 |
- |
mA |
||
Recommended Power Supply: 5V 1A DC |
|||||||
Reliability Test |
|||||||
Item |
Condition |
Min. |
Typ. |
Max. |
Unit |
||
Working Temperature |
60%RH at 5V voltage |
-20 |
25 |
70 |
℃ |
||
Storage Temperature |
- |
-30 |
25 |
85 |
℃ |
||
Working Humidity |
25℃ |
10% |
60% |
90% |
RH |
||
Protective Paint |
- |
- |
None |
- |
- |
||
Aging Test |
- |
- |
8 |
- |
H |
||
Interface |
|||||||
Item |
Condition |
Min. |
Typ. |
Max. |
Unit |
||
Baud Rate |
Standard |
1200 |
115200 |
921600 |
bps |
||
User-Defined |
1200 |
- |
921600 |
bps |
|||
Output Voltage (TXD、BUSY) |
Output 1,Iout=1mA |
3.0 |
3.2 |
- |
V |
||
Output 0,Iout=-1mA |
- |
0.1 |
0.2 |
V |
|||
Input Voltage (RXD) |
Input 1,Iin=1mA |
2.0 |
3.3 |
15.0 |
V |
||
Input 0,Iin=-1mA |
-15.0 |
0.0 |
0.3 |
V |
|||
Interface |
Mode is determined by Jumper6: ON = 8N1, 3.3V TTL/CMOS; OFF = 8N1, RS232 |
||||||
Socket |
HY2.0-8P/10pin,1.0mm FFC |
||||||
USB |
None |
||||||
SD slot |
Yes (SD/SDHC, FAT32 file format) |
||||||
Memory |
|||||||
Item |
Parameter |
Min |
Typ. |
Max |
Unit |
||
Flash |
Space of Font |
- |
32 |
- |
MB |
||
Picture Storage (128MB) |
- |
- |
365 |
Pcs |
|||
Picture Storage (256MB) |
- |
- |
215 |
Pcs |
|||
Picture Storage (1GB) |
- |
- |
932 |
Pcs |
|||
User's Storage |
0 |
- |
32 |
MB |
|||
Peripherals |
|||||||
Buzzer |
Yes |
||||||
RTC |
Yes |
||||||
Resistive touch screen |
Yes |
||||||
SD Card |
Yes |
||||||
Model number |
|||||||
P48272J43C_N02 |
No Touch |
||||||
P48272J43C_T02 |
Resistive Touch |
||||||
P48272J43C_P02 |
Pcap Touch |
||||||
Packaging and physical dimensions |
|||||||
|
|||||||
Parameter |
Data |
||||||
Dimensions |
121.9(width) ×74.4(height) ×12.6(thickness without TP) / 14.1(thickness with TP) mm |
||||||
Net weight of single piece |
TBD |
||||||
Weight of whole case |
TBD |
||||||
Packing box size |
TBD |
||||||
Packing specification |
120 pieces /box |
