4.3 Inch 480272 LCD Module

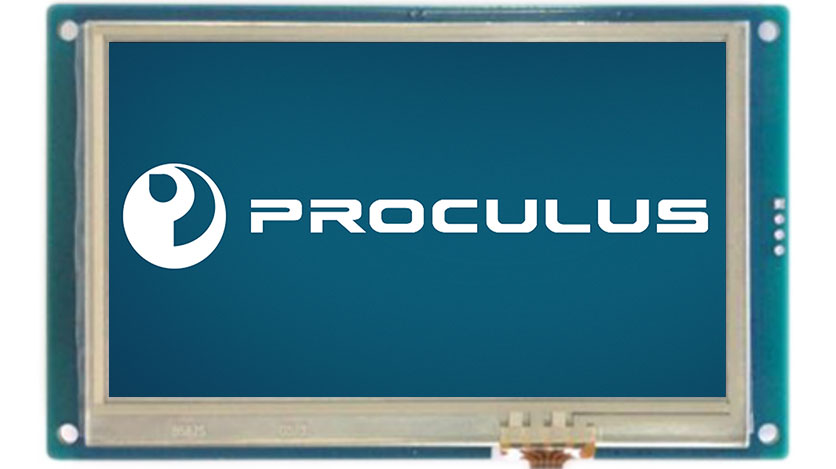

4.3 Inch 480x272 LCD Module
4.3 InchES, 480XRGBX272, 65K COLORS LCD MODULE
MODEL: P48272J43C_X02
Features of 4.3 Inch 480*272 LCD Module
Support wide range of power supply:Default is 6~35V, use jumper to choose 4.5~5.5V;
Support RS232/TTL/CMOS, the max baud rate is 921600bps;
Support audio and video;
Support hardware JPG decoding which makes storage more efficient and display quicker;
Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;
Support backlight brightness adjustment and automatic standby screen saver function;
Support multi-language font library, picture, TWO-DIMENSIONAL code display;
Support number and English input, customizable keyboard interface;
Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;
Easy-to-use UnicView GUIs Development, no coding skills required;
Instant operation when power on without system load time;
Excellent electromagnetic compatibility characteristics.
Proculus can provide you with 4.3 Inch TFT LCD module, 480x272 TFT LCD display, 4.3 Inch TFT LCD screen, 4.3 TFT LCD module, wholesale TFT touch screen and 4.3 Inch screen dimensions, if you want to know more information, you can click our official website.
Specifications of 4.3 Inch 480*272 LCD Module
Display strong> |
|||||||
Color |
65K (65536) colors,16 bit color 5R6G5B |
||||||
ACTIVE AREA / View Area |
95.0mm(width)×53.9mm(height)/97.5 mm(width)×56.4 mm(height) |
||||||
Resolution |
480*272,90° rotated display (272*480) |
||||||
Backlight /Lifecycle/Brightness |
LED/20,000 HOURS/ 250 cd/m²/(64 level adjustment) |
||||||
Working Temperature |
-20~+70℃/-30~+85℃ |
||||||
Voltage & Current |
|||||||
Item |
Condition |
Min. |
Typ. |
Max. |
Unit |
||
Power Voltage |
|
- |
5.0 |
5.5 |
V |
||
Operation Current |
VIN = 5V, Backlight on |
- |
450 |
- |
mA |
||
|
VIN = 5V, Backlight off |
- |
260 |
- |
mA |
||
Recommended Power Supply: 5V 1A DC |
|||||||
Reliability Test |
|||||||
Item |
Condition |
Min. |
Typ. |
Max. |
Unit |
||
Working Temperature |
60%RH at 5V voltage |
-20 |
25 |
70 |
℃ |
||
Storage Temperature |
- |
-30 |
25 |
85 |
℃ |
||
Working Humidity |
25℃ |
10% |
60% |
90% |
RH |
||
Protective Paint |
- |
- |
None |
- |
- |
||
Aging Test |
- |
- |
8 |
- |
H |
||
Interface |
|||||||
Item |
Condition |
Min. |
Typ. |
Max. |
Unit |
||
Baud Rate |
Standard |
1200 |
115200 |
921600 |
bps |
||
User-Defined |
1200 |
- |
921600 |
bps |
|||
Output Voltage (TXD、BUSY) |
Output 1,Iout=1mA |
3.0 |
3.2 |
- |
V |
||
Output 0,Iout=-1mA |
- |
0.1 |
0.2 |
V |
|||
Input Voltage (RXD) |
Input 1,Iin=1mA |
2.0 |
3.3 |
15.0 |
V |
||
Input 0,Iin=-1mA |
-15.0 |
0.0 |
0.3 |
V |
|||
Interface |
Mode is determined by Jumper6: ON = 8N1, 3.3V TTL/CMOS; OFF = 8N1, RS232 |
||||||
Socket |
HY2.0-8P/10pin,1.0mm FFC |
||||||
USB |
None |
||||||
SD slot |
Yes (SD/SDHC, FAT32 file format) |
||||||
Memory |
|||||||
Item |
Parameter |
Min |
Typ. |
Max |
Unit |
||
Flash |
Space of Font |
- |
32 |
- |
MB |
||
Picture Storage (128MB) |
- |
- |
365 |
Pcs |
|||
Picture Storage (256MB) |
- |
- |
215 |
Pcs |
|||
Picture Storage (1GB) |
- |
- |
932 |
Pcs |
|||
User's Storage |
0 |
- |
