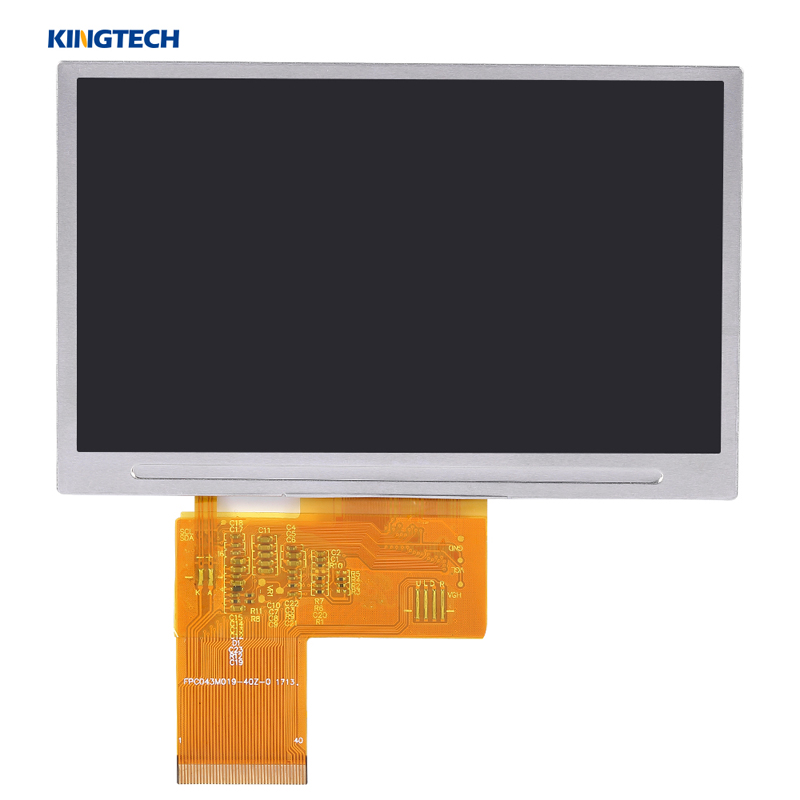

4.3 Inch 800x480 RGB Interface IPS LCD Module
Kingtech 4.3inch 800x480 tft /WVGA TFT LCD display is our most leading product. The supply is very long and stable.
This 4.3inch module is IPS/all/free/wide/full viewing angle LCD display, it has the resistive touch and capacitive touch, we can also custom LCD module according to the customer's requirements. The 4.3 inch lcd display module can reach 700nits and sunlight readable. The lcd tft 4.3 inch has HDMI Board.
Features of 4.3 Inch 800x480 RGB Interface IPS LCD Module
IPS TFT LCD display
Free/wide/tall/full viewing angle
800x480 / WVGA resolution
Landscape / Horizontal
High brightness / Sunlight readable screen / 700nits
Support resistive touch and capacitive touch
HDMI Board
Specification of 4.3 Inch 800x480 RGB Interface IPS LCD Module
|
Item |
kingtech 4.3inch IPS tft lcd module |
|
Model No |
PV04301LZR40B |
|
Resolution |
800x480 |
|
Outline Dimension |
105.5(W)×67.2(H)×3.0(T) |
|
Active Area(mm) |
95.04(W)×53.86(H) |
|
Interface |
24-bit Parallel RGB Interface |
|
Brightness |
700nits |
|
Viewing Angle |
All |
|
Driving IC |
HX8264D+HX8664 |
|
Display Mode |
TFT Transmissive / Normally Black |
|
Operating Temperature |
-20~70C |
|
Storage Temperature |
-30~80C |
|
Board |
Convert /HDMI Board |
|
Touchscreen |
Resistive and capacitive touchscreen |
Application of 4.3 Inch 800x480 RGB Interface IPS LCD Module
The 4.3inch 800x480 IPS lcd screen can be used for medical devices, handheld equipment, industrial control, smart Home, POS machine, E-bike, and black boxes.
Kingtech specializes in custom made as with small MOQ. Mainly manufacturing TFT LCD Display Module, AMOLED/OLED Display Module, Display Module With Touch Screen and Display Module With Board, etc. LCD display manufacturing is the main business of Kingtech LCD display module company.
