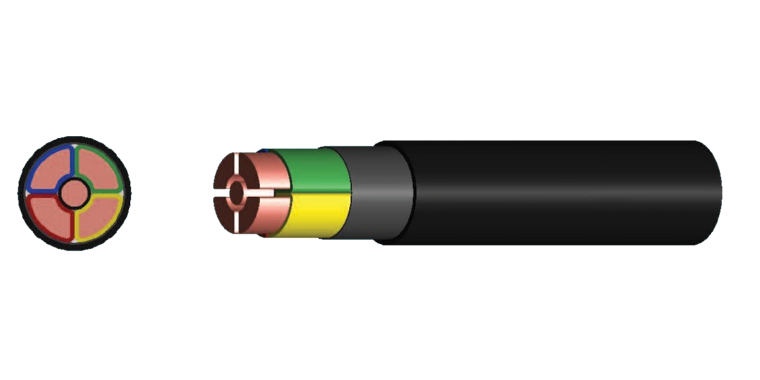

4 Cores +Earth Power Cable (XLPE Insulated)
The structure of 4 cores+1 earth is designed for application where the earth wires are required according to customer requirements. These 4 core and earth cables are often referred 4 cores +1 cables XLPE insulated with voltage 0.6/1000v or IEC60502 4 core and earth cable.
As a leading xlpe cable manufacturer and one of the top cable manufacturers in China, Jenuin offer cost-effective 4 core earth cable , 4mm 4 core and earth cable, 6mm 4 core and earth cable, and 16mm 4 core and earth cable made of high-quality material, feel free to contact!
4 Cores +Earth Power Cable (XLPE Insulated) Characteristics
|
Cross-sectional Area (mm²) |
No.&diameter of wire (N/mm) |
Average overall diameter (mm) |
Reference weight (kg/km) |
|
|
|
||||
|
|
||||
|
|
||||
|
4x1.5+1x1.0 |
1/1.38, 1/1.13 |
13.9 |
257 |
|
|
4x2.5+1x1.5 |
1/1.78, 1/1.38 |
14.9 |
322 |
|
|
4x4.0+1x2.5 |
7/0.85, 7/0.67 |
17.1 |
446 |
|
|
4x6.0+1x4.0 |
7/1.04, 7/0.85 |
18.4 |
567 |
|
|
4x10+1x6.0 |
7/1.35, 7/1.04 |
20.8 |
806 |
|
|
4x16+1x6.0 |
7/1.70, 7/1.04 |
23.0 |
1087 |
|
|
4x16+1x10 |
7/1.70, 7/1.35 |
23.5 |
1142 |
|
|
4x25+1x10 |
7/2.14, 7/1.35 |
26.8 |
1601 |
|
|
4x25+1x16 |
7/2.14, 7/1.70 |
27.3 |
3552 |
|
|
4x35+1x10 |
19/1.53, 7/1.35 |
29.8 |
2066 |
|
|
4x35+1x16 |
19/1.53, 7/1.70 |
30.3 |
2137 |
|
Description Of 4 Cores +Earth Power Cable (XLPE Insulated)
- Rated Temperature: 90oC
- Rated Voltage: 600/1000V
- Reference Standard: IEC60502
- Conductor: Shaped and circular stranded copper conductors
- Insulated: Insulated with cross-link polyethylene compound
- PVC bedded
- Flame retardant PVC sheathed overall
Application Of 4 Cores +Earth Power Cable (XLPE Insulated)
- For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions
- For situation not suppose to bear the external mechanical force
