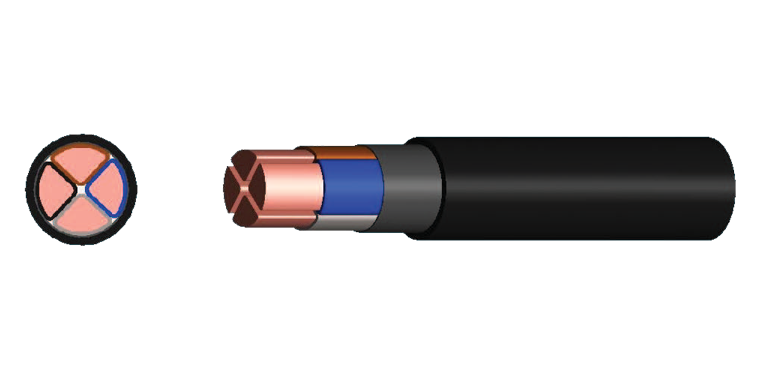

4 Cores Power Cable (PVC Insulated)

Aspiring to be the best cable manufacturer who produces polyvinyl chloride insulated cables in China, our PVC insulated 4 cores power cable or 4 cores pvc insulated wire is normally used in power transmission and distribution systems. The 4 core pvc cable is referred to IEC60502 CU/PVC/PVC 0.6/1KV. The circular conductor is applied for the size below 16mm² and the shaped conductor is applied for the size above and including 35mm². We also provide pvc sheathed cable.

4 Cores Power Cable (PVC Insulated) Parameter

Cross-sectional Area (mm²)

No.&diameter of wire (N/mm)

Average overall diameter (mm)

Reference weight (kg/km)

Conductor Resistance (Ω/km)

20℃ Max

4x1.5

1/1.38

13.2

243

12.1

4x2.5

1/1.76

14.2

305

7.41

4x4.0

7/0.85

17.1

454

4.61

4x6.0

7/1.04

18.3

564

3.08

4x10

7/1.35

20.7

794

1.83

4x16

7/1.7

23.1

1095

1.15

4x25

10/1.83

22.1

1270

0.727

4x35

14/1.83

24.3

1677

0.524

4x50

19/1.83

27.7

2274

0.387

4x70

27/1.83

31.7

3113

0.268

4x95

37/1.83

36.8

4207

0.193

4x120

30/2.32

40.1

5259

0.153

4x150

37/2.32

44.4

6446

0.124

4x185

37/2.52

48.5

7846

0.0991

4x240

48/2.52

55.7

10108

0.0754

4x300

61/2.52

61.4

12669

0.0601

4x400

61/2.95

69.0

17049

0.0470

Description of 4 Cores Power Cable (PVC Insulated)

  1. Rated Temperature: 70
  2. Rated Voltage: 600/1000V
  3. Reference Standard: GB/T12706, IEC60502, BS6346
  4. Model: VV
  5. Shaped stranded copper conductors
  6. Flame retardant insulated with PVC compound
  7. PVC bedded
  8. Flame retardant PVC sheathed overall

Application of 4 Cores Power Cable (PVC Insulated)

  1. For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions.
  2. For situation not suppose to bear external mechanical force.
