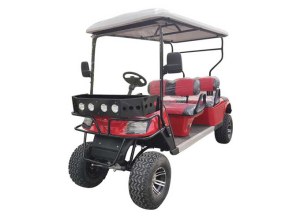

4 Seater Lifted Golf Carts
Two rows of seats with golf bag straps in the rear for up to 4 people. Equipped with independent suspension and larger wheels and off-road tires, the lifted 4 seater golf cart has higher climbing and off-road performance and is ideal for hilly golf courses.
|
Technical Parameters |
|
|
Overall Dimension |
2910*1350*2200mm |
|
Passengers Capacity |
4 |
|
Max. Speed |
40km/h & 25mph |
|
Max. Travelling Range |
80-100km |
|
Slope Climbing Capacity |
30% |
|
Turning Radius |
3m |
|
Ground Clearance |
300mm |
|
Brake Distance |
≤4m |
|
Wheelbase |
1700mm |
|
Front/Rear Tread |
950/1000mm |
|
Weight |
580kg |
|
Electric System |
|
|
Motor |
AC, 48V, 5kW |
|
Controller |
48V, 450A |
|
Battery Type |
Lead Acid, 150Ah, 8V*6pcs |
|
Charger |
Intelligent high-frequency car charger |
|
Charging Time |
8 hours |
|
Steering |
“Rack & Pinion” Steering |
|
Motivation Control |
|
|
Braking System |
Front Disc Brake, Rear Drum Brake, EMB system |
|
Front-axle And Suspension |
Independence suspension |
|
Rear-axle and Suspension |
Integral rear axle |
|
Tire |
215/35-12, with alloy rim |
|
Exterior |
|
|
Dashboard |
LCD instrument, Multifunction, show time, speed, driving range, |
|
battery capacity, etc |
|
|
Light |
Front & rear combination LED lights |
|
Seat |
Bus cold foam sponge + high resilience PU leather fabric |
|
Body Material |
Steel frame + ABS engineering plastic molding material |
Specification of 4 Seater Lifted Electricgolf Carts
