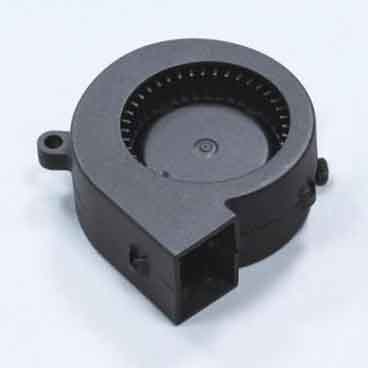

40-70mm DC Centrifugal Blowers
Prix : 5-500
WHEE DC centrifugal blowers it also has the advantages of simple manufacture and low cost.
Dc current sources with good stability, high precision and preset output are often used in electronic equipment.
40-70mm DC Centrifugal Blowers Functions
FG: FG Signal
RD: RD Signal
PWM: PWM Signal
VC: Voltage Control
TC: Temperature Control
40-70mm DC Centrifugal Blowers Specifications
|
BEARING TYPE |
F.D. Bearing /One ball /Sleeve bearing/ Two ball |
|
FRAME |
P B T. UL94V-0 |
|
IMPELLER |
P B T. UL94V-0 |
|
P C B |
UL94V-0 |
|
MATERIAL LIST |
RoHS Compliant |
|
OPERATING TEMPERATURE |
-10 ℃ ~ + 70 ℃ |
|
STORAGE TEMPERATURE |
-40 ℃ ~ + 70 ℃ |
|
DIELETRIC STRENGTH |
Applied a 500VAC for 1.0 minute or 600VAC for 2 seconds between housing and both lead wires. |
|
INSULATION RESISTANCE |
At least 10 MΩ at 500VDC between internal stator and both lead wires. |
|
LIFE EXPECTANCY |
30,000(S)/40,000(F)/50,000 hrs(2B) in running conditions at 40℃ ambient. |
40-70mm DC Centrifugal Blowers List
40*40*20 DC Centrifugal Blowers50*50*08 DC Centrifugal Blowers50*50*15 DC Centrifugal Blowers60*60*25 DC Centrifugal Blowers70*70*6.3 DC Centrifugal Blowers70*70*8.0 DC Centrifugal Blowers70*70*10 DC Centrifugal Blowers70*70*12 DC Centrifugal Blowers70*70*15 DC Centrifugal Blowers
Dongguan Wanhang Electronics Technology Co, Ltd. is a professional cooling fan supplier. We provide DC Micro Fans, DC Micro Blowers, miniature centrifugal blower, mini centrifugal blower, mini centrifugal fan, small centrifugal blower fans, small centrifugal blower, small centrifugal fan, centrifugal cooling fan and so on. Want to know more? Please contact us.
