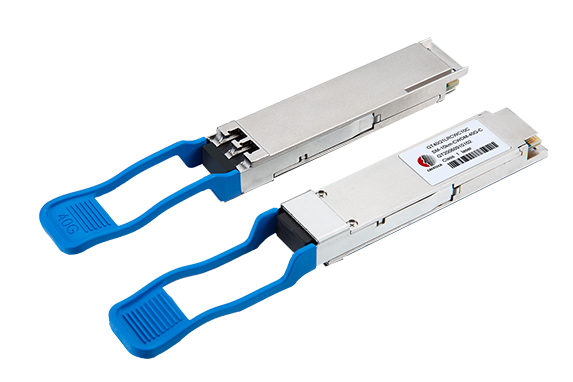

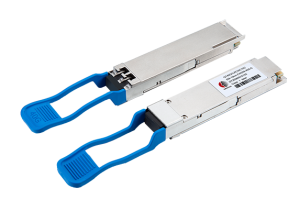

40G QSFP+ LR4
GrenTech 40G QSFP+ LR4 compliant with IEEE 802.3ba and SFF-8436. It uses 4 channels CWDM solution with a LC connector, and it can transmit up to 10km over single-mode fiber. It has advantage of low power consumption and stable performance, and it widely uses in 40G Ethernet and data centres.
40G QSFP LR4 Specification
|
Product Name |
40G QSFP+ LR4 |
Vendor Name |
GrenTech |
|
Form Factor |
QSFP+ |
Wavelength |
CWDM |
|
Max Data Rate |
4X10Gbps |
Transmitter Distance |
10km |
|
Cable Type |
SM |
Connector |
LC |
|
Transmitter |
DFB |
Receiver |
PIN |
|
DDM |
Supported |
Temperature Range |
0-70℃ |
|
Modulation Format |
NRZ |
FEC |
NO |
|
Power Consumption |
≤2.5W |
EMC |
Supported |
As one of the most professional communication equipment manufacturers, we provide communication equipment, optical transceiver and etc. For more SFP information, please feel free to contact us!
