48V 230VAC 5000W SOLAR INVERTER CHARGER (500VOC)

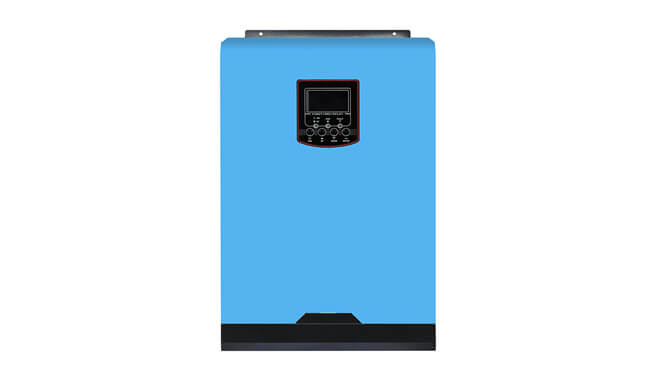

The Cosuper SPE5000S solar inverter charger is a combination of solar charger, battery inverter and AC charger. This solar power inverter 5000w also comes with a built-in 80A MPPT solar controller that ensures maximum solar energy generation that ensures maxium solar energy generation and allows you to make more savings on your electricity bills. Its auto transfer switch ensures that the inverter will automatically switches to solar and battery mode in the event of blackout.With high power capacity, the 5000 watt solar inverter allows you to run heavy loads, such as air conditioners, water pumps, electric tools, etc.
This model is able to power the load directly from solar power without using the battery power or grid power. The 5000 watt solar inverter helps greatly in increasing the efficiency of the solar power and reducing costs.
FEATURES OF 48V 230VAC 5000W SOLAR INVERTER CHARGER (500VOC)
Charging priority between utility AC power, generator and solar power
Adjustable AC input voltage (90~280VAC)
Support USB, RS485 communication function with monitoring software
Smart LCD setting (Working mode, Charge Current, Charge Voltage, etc.)
Built in Multi-protection: Over/under voltage, overload, overheating, short circuit protection
Auto switch between Utility AC and Battery with minimum 10ms
This power solar inverter is also featured by cold start function
2 years warranty
TECHNICAL SPECIFICATIONS OF 48V 230VAC 5000W SOLAR INVERTER CHARGER (500VOC)
|
Models |
SPE-5000SM |
|
Battery System Voltage |
48VDC |
|
AC Input |
|
|
Rated AC Input Voltage |
230VAC±5% |
|
Selectable Voltage Range |
170~280VAC(For PC and sensitive loads); 90~280VAC (For home appliances) |
|
Frequency |
Auto sense 50/60Hz |
|
Inverter Output |
|
|
Rated Power |
5000Va/5000W |
|
Surge Power |
10000VA/10000W |
|
Waveform |
Pure Sine Wave |
|
AC Voltage Regulation (batt. mode) |
230VAC±5% |
|
Inverter Efficiency(peak) |
93% |
|
Transfer Time |
10ms(UPS); 20ms(APL) |
|
Battery |
|
|
Rated Voltage |
48VDC |
|
Floating Charge Voltage |
54VDC |
|
Overcharge Protection |
63VDC |
|
MPPT ver. Charging Info |
|
|
PV Open Voltage |
500VDC |
|
Nomia PV Input Volt Range |
120~450VDC |
|
(MPPT) Solar Charge Current |
80A |
|
(MPPT) Maxium Solar Input |
4000W |
|
Maxium AC Charge Current |
60A |
|
(MPPT ver.) Solar Current+AC Current |
80A |
|
General Parameter |
|
|
Operating/ Storage temperature |
0~55℃/-15~60℃ |
|
Working Humidity |
5%~95% relative humidity(Non-condensing) |
|
Cooling |
Auto fan cooling |
|
Dimensions(D*W*H)(mm) |
100*300*440 |
|
Net Weight(kg) |
100*300*440 |
There are many lithium iron phosphate battery suppliers, but we are one of the best choices for you.
