$153.67

weight: 1020g

size: 183*120*68mm

Brand：	WELLSEE	Dimension：	183*120*68mm
Name：	solar charge controller	Weight：	1020g
Model：	WS-C4860 60A	Package：	18pc/ctn

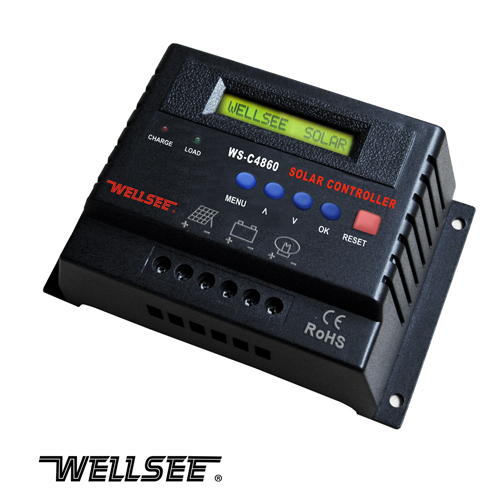

WS-C4860 60A type series solar charge controllers (WELLSEE solar intelligent charge controller, solar regulator) are of stable quality and high reliability, and can be applied under various worse geological conditions. Its appearance and function design has reached international advanced level. Depending on the types and actual charging situation of the battery,WS-C solar charge controller series (solar voltage controller) can provide the fast and best charging voltage and electricity from the PV panel. WELLSEE solar charge controllers are equipped with advanced man-machine interactive function, so the user can adjust the charging voltage.

Functions:

1. Overload protection
2. Short circuit protection
3. Reverse discharge protection
4. Reverse polarity connection protection
5. Thunder protection
6. Low voltage protection
7. Overcharge protection
8. Battery stop and charge voltage HVD sets up
9. Charge and low voltage LCD sets up
10. Battery capability display SOC
11. Loads and comeback setups.
12. Intellectualized temperature compensation
13. Record and calculate the charged AH and display it on the LCD screen.
14. Record and calculate the discharged AH and display it on the LCD screen
15. working temperature: -25℃----+55℃

Technical Index:

1. Model: WS-C4860
2. Rated Voltage: 48V
3. Max load current: 60A
4. Input Voltage: 48V~80V
5. Length≤1m,Charge loop drop: ＜0.25V
6. Length≤1m,Discharge loop drop: ＜0.15V
7. Over voltage protection: 68V
8. Full charge cut: 54.8V
9. Low voltage cut: 42V
10. Temperature compensation: -3mv/℃/cell
11. No load loss: ≤30mA
12. Max wire area: 6mm2
13. Ambient temperature: -35°C—+55°C
