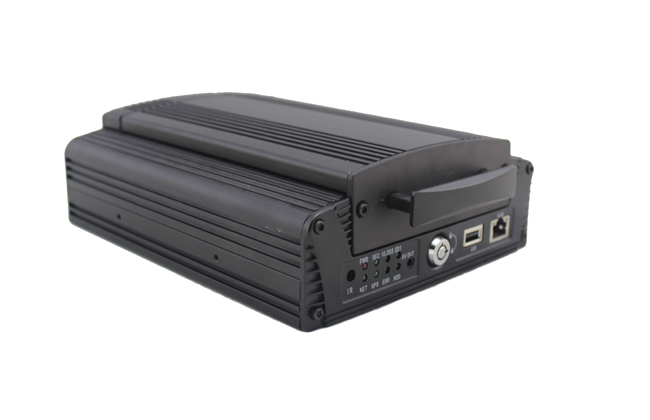

4CH 720P HDD Mobile DVR with 4G GPS WIFI M710(G4F)
1
Supports 1-4CH 720P real-time recording, AHD 720P and CVBS optional
2
Supports Hard disk for main recording (Max 4TB), supports SD card (max 256GB) for mirror recording;
3
Supports real-time remote viewing through 4G/3G/WIFI(optional), remote video & trace download and playback
4
Support two way talking and trunking intercom via 4G/3G or WIFI
5
supports pre-recording for alarm events, motion detection alarm, G sensor alarm, alarm linkage, etc
6
Builtin(3G/4G Intelligent switch)、WiFi、GPS/Glonass 、G-sensor Etc
7
support to connect external OBD sensors, temperature sensor, oil sensors, etc
8
Support two way talking and trunking intercom via 4G/3G or WIFI
Specification of 4CH 720P HDD mobile dvr recorder with 4G GPS WIFI
|
OS |
Linux |
|
|
Language |
English/Chinese/Customized |
|
|
Video Compression |
H.264 Compression |
|
|
Video Record System |
Video-Input |
1-4 Channels AHD/CVBS |
|
aviation connector, 1.0Vp-p, 75Ω |
||
|
Video Onput |
1 CVBS, 1.0Vp-p, 75Ω, Aviation, Support 1CH Full Screen, 4CH Screen view |
|
|
Resolution |
720P/D1/HD1/CIF, MAX: 4 channels of 720P |
|
|
Image Quality |
0-7 levels, 0 is the highest level. |
|
|
Audio Compression |
G.726 compression, 8KB/s speed |
|
|
Alarm Input |
6CH Alarm Input,1CH AD Input, impulse speed input, Alarm Linkage |
|
|
Alarm Output |
2CH Alarm Output, Support Light/Sound alarm sensor, Oil/Power cut off |
|
|
Interface |
2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection,1CH 485 Interface |
|
|
4G/3G |
Built-in 4G module optional, TDD-LTE, FDD-LTE, WCDMA |
|
|
GPS Position |
Support Built GPS/BD Module |
|
|
WiFi |
2.4G HZ or 5G HZ |
|
|
Storage |
Max 2.5” 4TB HDD+Max 128GB SD Card Mirror |
|
|
USB Interface |
USB Interface on Front Panel for data back up by U Disk, Hard Disk |
|
|
Video playback |
Max support 4CH Replay /Stop/Fast/Slow at same time |
|
|
Optional Functions |
Support voice call each other |
|
|
Support TTS voice broadcast function. |
||
|
Support LED Advertisement Panel, Oil Sensor, ADAS, DSM, Car OBD, two-way talking, etc. |
||
|
Voltage & Power |
Wide Voltage.Support DC: +10V - +36V |
|
|
+12V~1.5A,+5V~1.5A |
||
|
Working Environment |
-20℃ - +70℃ |
|
|
Others |
218 (D)* 161(W)* 65(H) mm |
|
|
2.2 Kg |
||
