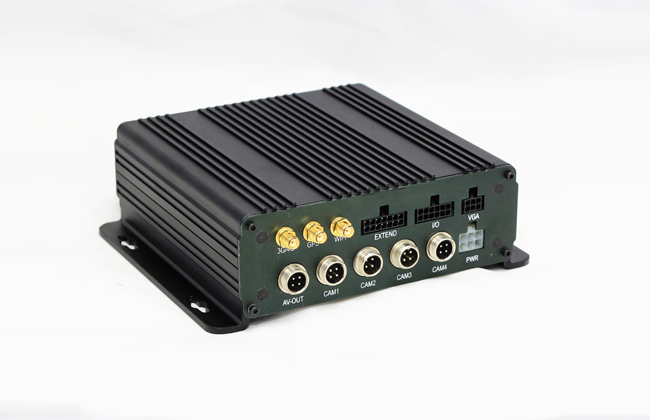

4CH 720P SD Card Mobile DVR With 4G GPS WIFI

OS

Linux

Language

English/Chinese/Customized

Video Compression

H.264 Compression

Video Record

System

Video-Input

1-4 Channels AHD/CVBS

aviation connector, 1.0Vp-p, 75Ω

Video Onput

1 CVBS, 1.0Vp-p, 75Ω, Aviation, Support 1CH Full Screen,4CH Screen view

Resolution

720P/D1/HD1/CIF, MAX: 4 channels of 720P

Image Quality

0-7 levels, 0 is the highest level.

Compression

G.726 compression, 8KB/s speed

Alarm Input

6CH Alarm Input,1CH AD Input, impulse speed input, Alarm Linkage

Alarm Output

2CH Alarm Output, Support Light/Sound alarm sensor, Oil/Power cut off

Interface

2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection,1CH 485 Interface

4G/3G

Built-in 4G module optional, TDD-LTE, FDD-LTE, WCDMA

GPS Position

Support Built GPS/BD Module

WiFi

2.4G HZ or 5G HZ

Storage

2XSD cards recording(each max 256GB )

USB Interface

USB Interface on Front Panel for data back up by U Disk, Hard Disk

Video playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Optional Functions

Support voice call each other

Support TTS voice broadcast function.

Support LED Advertisement Panel, Oil Sensor, ADAS, DSM, Car OBD, two-way talking, etc.

Voltage & Power

Wide Voltage.Support DC: +10V - +36V

+12V~1.5A,+5V~1.5A

Working Environment

-20℃ - +70℃

Others

150 (W) w 57 (H) x 168 (L) mm,

weight 1.1KG
