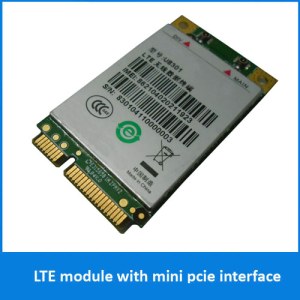

4G LTE module U8301 Mini PCIe module LTE-FDD/WCDMA/EDGE/GPRS/GSM

U8301 is a wireless module which is designed for the global market. It is a consumptive product; it can be designed in many kinds of applications which can work on LTE-FDD/WCDMA/EDGE/GPRS/GSM network.

On LTE-FDD network, U8301 enables connect to the Internet at DL data speed up to 100Mbps and UL data speed up to 50Mbps. in the area where LTE service are not available, U8301 still enables reliable and secure data connect over DC-HSPA+/UMTS/EDGE/GPRS/GSM network.
U8301 provides SMS, MMS, Phonebook functions as well as high speed access. And also reserves a group of PCM interface for Audio function. It can be designed in many kinds of applications. Such as Data card, Video monitor, Tablet, Electric-book, MID, Vehicle equipment, etc.

General features

* EDGE multi-slot class 12

* GPRS multi-slot class 12

* Compliant to GSM phase 2/2+

* Output power:
- Class 3 (0.25W) for LTE/UMTS
- Class 4 (2 W) for GSM850/900
- Class 1 (1 W) for GSM1800/1900

* Control via AT commands
(3GPP TS27.005/3GPP TS27.007 )

* Supply voltage range 3.0V-3.6V

* Low Power consumption
- Sleep mode: 5mA
- Power down 50μA

* Temperature range
- Normal Operation: -20°C to +65°C
- Restricted Operation: -30°C to +75°C

Specifications for SMS

* Point-to-point Mo and MT

* SMS cell broadcast

* Text and PDU mode

Specifications for data

* Specifications for data:

* Support Release 9 Category 3

* LTE-FDD up to 100 Mbps DL, 50 Mbps UL

* DC-HSPA+ up to 42 Mbps DL

* HSPA+ up to 21 Mbps DL

* EDGE class 12: 237kbps DL/118kbps UL

* GPRS class 10: 85.6kbps DL/85.6kbps UL

* CSD up to 14.4 kbps

* Non transparent mode

* PBCCH support

* PPP-stack

* Coding schemes CS 1,2,3,4

Interfaces

* Hirose's U.FL-R-SMT 50 _ RF connector

* PCI ExpressR Mini Card Interface
- Power supply
- USB 2.0 high speed
- UICC/SIM card interface 3 V, 1.8 V
- UART
- PCM

* Antenna connector

Additional features

* Phone book

* Real time clock

* DTMF

Approvals

* RoHS
