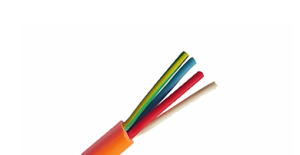

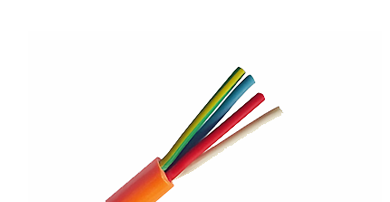

4mm Orange Circular Cable 3 Core+ Earth 0.6-1kv
As one of the industrial wire manufacturers in China, our 4mm orange circular cable is widely used in Australia and New Zealand marktet following the standard of AS/NZS 5000.1. It is referred as orange circular CU/PVC/PVC 3x4mm²+2.5. We get the SAA CERTIFICATE for these cables.
4mm Orange Circular Cable 3 Core+ Earth 0.6-1kv Parameter
|
Nominal |
Strands/wire |
Insulation |
Sheath |
Nom.O/D |
Appr weight |
|
|
1.5 |
3x7/0.5+7/0.5E |
0.8 |
1.8 |
11.5 |
180 |
|
|
2.5 |
3x7/0.67+7/0.67E |
0.8 |
1.8 |
12.6 |
243 |
|
|
4 |
3x7/0.85+7/0.67E |
1 |
1.8 |
14.5 |
302 |
|
|
6 |
3x7/1.04+7/0.67E |
1 |
1.8 |
15.8 |
376 |
|
|
10 |
3x7/1.35+7/0.85E |
1 |
1.8 |
18.2 |
549 |
|
|
16 |
3x7/1.70+7/1.04E |
1 |
1.8 |
20.5 |
774 |
|
|
25 |
3x19/1.35+7/1.04E |
1.2 |
1.8 |
23.7 |
1108 |
|
|
35 |
3x19/1.53+7/1.35E |
1.4 |
1.8 |
26.6 |
1459 |
|
|
50 |
3x19/1.78+7/1.70E |
1.4 |
2 |
29.6 |
1952 |
|
|
70 |
3x19/2.14+19/1.35E |
1.4 |
2 |
34.6 |
2735 |
|
|
95 |
3x37/1.78+19/1.35E |
1.6 |
2.2 |
38.7 |
3550 |
|
|
120 |
3x37/2.03+19/1.53E |
1.6 |
2.4 |
42.8 |
4740 |
|
Description of 4mm Orange Circular Cable 3 Core+ Earth 0.6-1kv
- Conductor: annealed copper to AS/NZS 1125
- Standard: AS/NZS5000.1
- Rated voltage: 600/1000V
- xlpe insulation: PVC
- Sheath: PVC 5v -90
- Normal working temperature: 90°C
Application Of 4mm Orange Circular Cable 3 Core+ Earth 0.6-1kv
Orange circular cables are widely used in the power networks and power distribution system. They are normally installed for mains, sub mains and sub circuits unenclosed as well as enclosed in conduit buried direct or underground ducts for buildings and industrial plants. They are only to be allowed to use in the situation were not subject to mechanical damage are suitable for glanding.
In addition to the above cable, we also supply control cable
