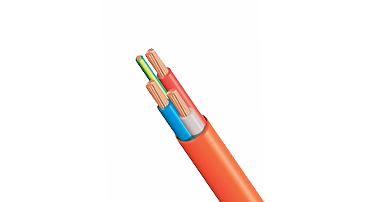

4mm Orange Circular Cable 3 Core+ Earth 0.6-1kv
4 mm orange armoured cable are widely used in Australia and New Zealand marktet following the standard of AS/NZS 5000.1, it is refered as orange circular CU/PVC/PVC 3x4mm²+2.5. We get the SAA CERTIFICATE for these cables.
4mm Orange Circular Cable 3 Core+ Earth 0.6-1kv Parameter
Nominal |
Strands/wire |
Insulation |
Sheath |
Nom.O/D |
Appr weight |
1.5 |
3x7/0.5+7/0.5E |
0.8 |
1.8 |
11.5 |
180 |
2.5 |
3x7/0.67+7/0.67E |
0.8 |
1.8 |
12.6 |
243 |
4 |
3x7/0.85+7/0.67E |
1 |
1.8 |
14.5 |
302 |
6 |
3x7/1.04+7/0.67E |
1 |
1.8 |
15.8 |
376 |
10 |
3x7/1.35+7/0.85E |
1 |
1.8 |
18.2 |
549 |
16 |
3x7/1.70+7/1.04E |
1 |
1.8 |
20.5 |
774 |
25 |
3x19/1.35+7/1.04E |
1.2 |
1.8 |
23.7 |
1108 |
35 |
3x19/1.53+7/1.35E |
1.4 |
1.8 |
26.6 |
1459 |
50 |
3x19/1.78+7/1.70E |
1.4 |
2 |
29.6 |
1952 |
70 |
3x19/2.14+19/1.35E |
1.4 |
2 |
34.6 |
2735 |
95 |
3x37/1.78+19/1.35E |
1.6 |
2.2 |
38.7 |
3550 |
120 |
3x37/2.03+19/1.53E |
1.6 |
2.4 |
42.8 |
4740 |
Description of 4mm Orange Circular Cable 3 Core+ Earth 0.6-1kv
Conductor: annealed copper to AS/NZS 1125
Standard: AS/NZS5000.1
Rated voltage: 600/1000V
Insulation: PVC
Sheath: PVC 5v -90
Normal working temperature: 90°C
Application Of 4mm Orange Circular Cable 3 Core+ Earth 0.6-1kv
Orange circular cables are widely used in the power networks and power distribution system. They are normally installed for mains, sub mains and sub circuits unenclosed as well as enclosed in conduit buried direct or underground ducts for buildings and industrial plants. They are only to be allowed to use in the situation were not subject to mechanical damage are suitable for glanding.
JENUIN cable is a wire cable factory, we provide china electric cable, 3 core orange flexible cable, 4mm 4 core and earth, power cable 4mm, 4mm heat resistant flexible cable, orange circular cable current rating, control cable, xlpe insulated cable and etc. Want to know orange circular cable prices and orange circular cable sizes, contact us.
