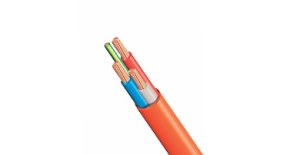

4mm Orange Circular Cable 3 Core+ Earth 0.6-1kv
4 mm orange armoured cable are widely used in Australia and New Zealand marktet following the standard of AS/NZS 5000.1, it is refered as orange circular CU/PVC/PVC 3x4mm²+2.5. We get the SAA CERTIFICATE for these cables.
4mm Orange Circular Cable 3 Core+ Earth 0.6-1kv Parameter
|
Nominal |
Strands/wire |
Insulation |
Sheath |
Nom.O/D |
Appr weight |
|
1.5 |
3x7/0.5+7/0.5E |
0.8 |
1.8 |
11.5 |
180 |
|
2.5 |
3x7/0.67+7/0.67E |
0.8 |
1.8 |
12.6 |
243 |
|
4 |
3x7/0.85+7/0.67E |
1 |
1.8 |
14.5 |
302 |
|
6 |
3x7/1.04+7/0.67E |
1 |
1.8 |
15.8 |
376 |
|
10 |
3x7/1.35+7/0.85E |
1 |
1.8 |
18.2 |
549 |
|
16 |
3x7/1.70+7/1.04E |
1 |
1.8 |
20.5 |
774 |
|
25 |
3x19/1.35+7/1.04E |
1.2 |
1.8 |
23.7 |
1108 |
|
35 |
3x19/1.53+7/1.35E |
1.4 |
1.8 |
26.6 |
1459 |
|
50 |
3x19/1.78+7/1.70E |
1.4 |
2 |
29.6 |
1952 |
|
70 |
3x19/2.14+19/1.35E |
1.4 |
2 |
34.6 |
2735 |
|
95 |
3x37/1.78+19/1.35E |
1.6 |
2.2 |
38.7 |
3550 |
|
120 |
3x37/2.03+19/1.53E |
1.6 |
2.4 |
42.8 |
4740 |
Description of 4mm 4 core and earth Cable 3 Core+ Earth 0.6-1kv
Conductor: annealed copper to AS/NZS 1125
Standard: AS/NZS5000.1
Rated voltage: 600/1000V
Insulation: PVC
Sheath: PVC 5v -90
Normal working temperature: 90°C
Application Of 4mm heat resistant flexible cable 3 Core+ Earth 0.6-1kv
3 core orange flexible cable are widely used in the power networks and power distribution system. They are normally installed for mains, sub mains and sub circuits unenclosed as well as enclosed in conduit buried direct or underground ducts for buildings and industrial plants. They are only to be allowed to use in the situation were not subject to mechanical damage are suitable for glanding.
For more information about orange circular cable current rating and orange circular cable prices, please feel free to contact us!As a professional electrical cable company, JENUIN has high-quality pvc insulated wire for sale. Welcome to contact us if needed.
