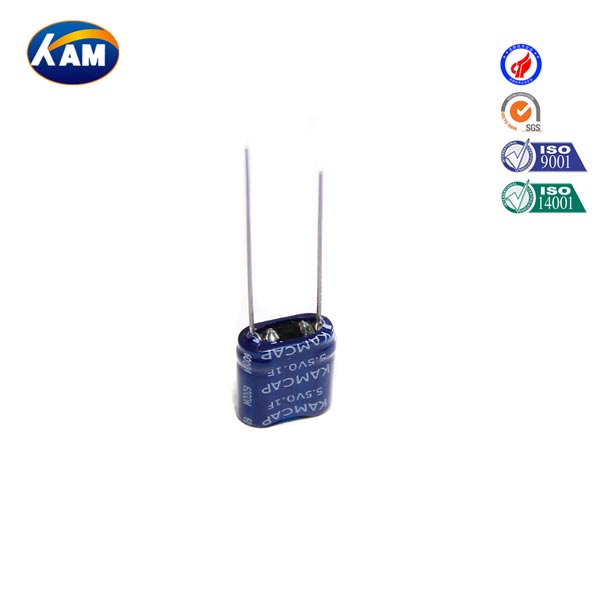

5.5V Combined Type Seires Super Capacitors
Quantité : 100000/day
Kamcap is one of the earliest ultracapacitor suppliers in China to develop super supercapacitor.
SE series Performance characteristics: standard energy series.
SE series Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
SE Series specification sheet
ries name SE Series
Type name SE -5R5
Rated voltage 5.5V
VR
Surge voltage 5.8V
Capacity range 0.33F~7.5F
Operating temperature range -25~ +70°C
Product life Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times
High temperature endurance life: 70 ° C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 4 times
SP Series Performance characteristics：Standard power series
SP Series Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
SP Series specification sheet
Series name SP Series
Type name SP -5R5
Rated voltage 5.5V
VR
Surge voltage 5.8V
Capacity range 0.1F~8F
Operating temperature range 40 ~ +70°C
Product life Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times
High-temperature endurance life: 70 ° C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 3 times
SE -5R5(Connection plate) Product performance list
Model Capacity
F ESR mΩ Product size (mm)
DC AC
1kHz Width
±1
Length
±1
Height
±1 Pin distance
SE-5R5-Z473VYL03 0.047 3600 1800 5.5 10.5 14 6.8
SE-5R5-Z104VYL01 0.1 4800 2400 5.5 10.5 12 6.8
SE-5R5-Z224VYL16 0.22 2400 1200 7 13.5 12 9
SE-5R5-Z224VYL17 0.22 2400 1200 7 13.5 15 9
SE-5R5-Z334VYL06 0.33 2400 1200 8.5 16.5 15 12
SE-5R5-Z474VYL06 0.47 2400 1200 8.5 16.5 15 12
SE-5R5-Z105VYL07 1 1000 500 8.5 16.5 twenty two 12
SE-5R5-Z105VYL13 1 1000 500 10.5 20.5 twenty two 15.3
SE-5R5-Z155TYL07 1.5 1000 500 8.5 16.5 twenty two 12
SE-5R5-Z155VYL13 1.5 800 400 10.5 20.5 twenty two 15.3
SE-5R5-Z205VYL09 2 480 240 13 25.5 twenty three 17.8
SE-5R5-Z405VYL09 4 400 200 13 25.5 twenty three 17.8
SE-5R5-Z505VYL19 5 240 120 13 25.5 36 17.8
SE-5R5-Z505VYL10 5 320 160 13 25.5 27 17.8
SE-5R5-Z605VYL19 6 200 100 13 25.5 36 17.8
SE-5R5-Z805UYL21 8 200 100 16.5 32.5 28 twenty four
SE-5R5-Z106VYL22 10 200 100 16.5 32.5 36 twenty four
SP -5R5（Connection plate）Product performance list
Model Capacity
F ESR mΩ Product size（mm）
DC AC
1kHz Width
±1 Length
±1
Height
±1 Pin distance
SP-5R5-Z473VYL14 0.047 1400 700 4.5 8.5 11.5 6
SP-5R5-Z473VYL01 0.047 2400 1200 5.5 10.5 14 6.8
SP-5R5-Z104VYL01 0.1 2400 1200 5.5 10.5 12 6.8
SP-5R5-Z104VYL03 0.1 800 400 5.5 10.5 14 6.8
SP-5R5-Z224VYL16 0.22 1200 600 7 13.5 12 9
SP-5R5-Z224VYL17 0.22 1200 600 7 13.5 15 9
SP-5R5-Z334VYL06 0.33 1200 600 8.5 16.5 15 12
SP-5R5-Z474VYL06 0.47 1200 600 8.5 16.5 15 12
SP-5R5-Z474TYL16 0.47 2200 1100 7 13.5 12 9
SP-5R5-Z474VYL17 0.47 2200 1100 7 13.5 15 9
SP-5R5-Z504VYL06 0.5 1200 600 8.5 16.5 15 12
SP-5R5-Z504TYL16 0.5 2400 1200 7 13.5 12 9
SP-5R5-Z105VYL13 1.0 480 240 10.5 20.5 twenty two 15.3
SP-5R5-Z105VYL42 1.0 1000 500 7 13.5 twenty four 9
SP-5R5-Z105VYL07 1.0 520<span style="font-size: 10.5
