5.5V Combined Type Seires Super Capacitors
Kamcap is one of the leading supercapacitor manufacturers in China. We supply high-quality ultracapacitors, including coin type supercapacitor, winding type supercapacitor, combined type supercap capacitor, module supercaps, high temperature supercap and hybrid capacitor.
5.5V Combined Type Seires Super Capacitors
SP Series Performance characteristics: Standard power series
SP Series Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
SP Capacitor Series specification sheet
|
Series name |
SP Series |
|
Type name |
SP -5R5 |
|
Rated voltage |
5.5V |
|
VR |
|
|
Surge voltage |
5.8V |
|
Capacity range |
0.1F~8F |
|
Operating temperature range |
40 ~ +70℃ |
|
Product life |
Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
|
High-temperature endurance life: 70 ° C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 3 times |
SE series Performance characteristics: standard energy series.
SE series Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
SE Series specification sheet
|
Series name |
SE Series |
|
Type name |
SE -5R5 |
|
Rated voltage |
5.5V |
|
VR |
|
|
Surge voltage |
5.8V |
|
Capacity range |
0.33F~7.5F |
|
Operating temperature range |
-25~ +70℃ |
|
Product life |
Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
|
High temperature endurance life: 70 ° C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
Kamcaps works to provide high-quality supercapacitors to our customers. Different types of supercapacitors can be chosen to meet different requirements.
SP -5R5（Connection plate）Product performance list
|
Model |
Capacity F |
ESR mΩ |

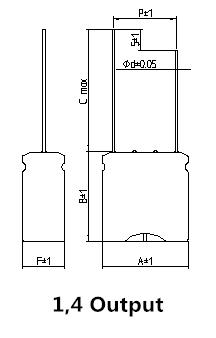

Product size（mm） |
||||
|
DC |
AC 1kHz |
Width ±1 |
Length ±1
|
Height ±1 |
Pin distance |
||
|
SP-5R5-Z473VYL14 |
0.047 |
1400 |
700 |
4.5 |
8.5 |
11.5 |
6 |
|
SP-5R5-Z473VYL01 |
0.047 |
2400 |
1200 |
5.5 |
10.5 |
14 |
6.8 |
|
SP-5R5-Z104VYL01 |
0.1 |
2400 |
1200 |
5.5 |
10.5 |
12 |
6.8 |
|
SP-5R5-Z104VYL03 |
0.1 |
800 |
400 |
5.5 |
10.5 |
14 |
6.8 |
|
SP-5R5-Z224VYL16 |
0.22 |
1200 |
600 |
7 |
13.5 |
12 |
9 |
|
SP-5R5-Z224VYL17 |
0.22 |
1200 |
600 |
7 |
13.5 |
15 |
9 |
|
SP-5R5-Z334VYL06 |
0.33 |
1200 |
600 |
8.5 |
16.5 |
15 |
12 |
|
SP-5R5-Z474VYL06 |
0.47 |
1200 |
600 |
8.5 |
16.5 |
15 |
12 |
|
SP-5R5-Z474TYL16 |
0.47 |
2200 |
1100 |
7 |
13.5 |
12 |
9 |
|
SP-5R5-Z474VYL17 |
0.47 |
2200 |
1100 |
7 |
13.5 |
15 |
9 |
|
SP-5R5-Z504VYL06 |
0.5 |
1200 |
600 |
8.5 |
16.5 |
15 |
12 |
|
SP-5R5-Z504TYL16 |
0.5 |
2400 |
1200 |
7 |
13.5 |
12 |
9 |
|
SP-5R5-Z105VYL13 |
1.0 |
480 |
240 |
10.5 |
20.5 |
22 |
15.3 |
|
SP-5R5-Z105VYL42 |
1.0 |
1000 |
500 |
7 |
13.5 |
24 |
9 |
|
SP-5R5-Z105VYL07 |
1.0 |
520 |
260 |
8.5 |
16.5 |
22 |
12 |
|
SP-5R5-Z105VYL08 |
1.0 |
800 |
<span style="font-s |
||||
