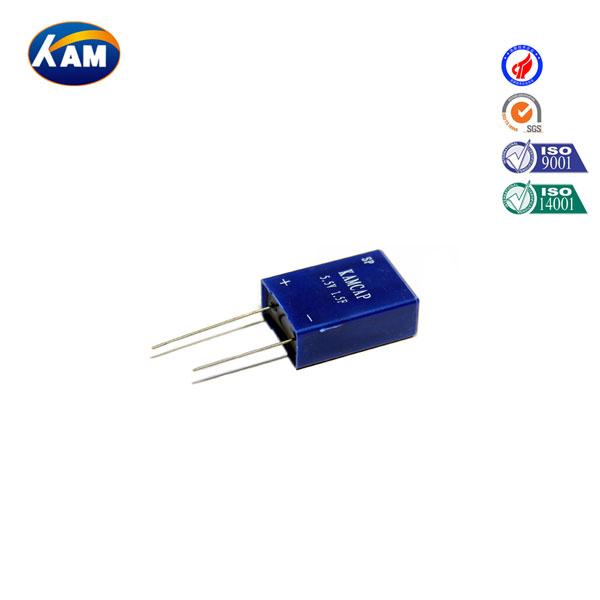

5.5V Fully Sealed (Waterproof) Supercapacitor
Brief Introduction of 5.5 v 1.0 f Sealed Supercapacitor
SE Series Performance characteristics: Standard energy series
Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
SP Series Performance characteristics: Standard power series
Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
Kamcap supplies different types of supercapacitors, all of which are of high-quality and good prices. Contact us if you need more product information!
Specification and Drawing of 5.5V Waterproof Supercapacitor
|
Series name |
SP Two series |
SP Three series |
SE Seires |
|
|
Type name |
SP -5R5 |
SP -7R5 |
SE -5R0 |
SE -5R5 |
|
Rated voltage VR |
5.5V |
7.5V |
5.0V |
5.5V |
|
Surge voltage |
5.8V |
7.8V |
5.3V |
5.8V |
|
Capacity range |
0.1F~1.5F |
0.33F~1.0F |
0.33F~0.47F |
0.33F~7.5F |
|
Operating temperature range |
-40 ~ +70℃ |
-40 ~ +70℃ |
-25~ +70℃ |
-25~ +70℃ |
|
Product life |
Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
|||
Kamcap is the earliest ultracapacitor manufacturer, we provide best ultracapacitor, low esr supercapacitor, kamcap 5.5 v 1.0 f and etc. Contact us to buy supercapacitor.
