5.5V High Temperature Series
Technical data
HT Series
Performance characteristics: High temperature 85 ° C series
Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
Series specification sheet
|
Series name |
HT Combined series |
|
Type name |
HT-5R5 |
|
Rated voltage V R |
5.5V |
|
Surge voltage |
5.8V |
|
Capacity range |
0.5F~10F |
|
Operating temperature range |
-40 ~ +85°C |
|
Product life |
Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
|
High temperature endurance life: 85 ° C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |

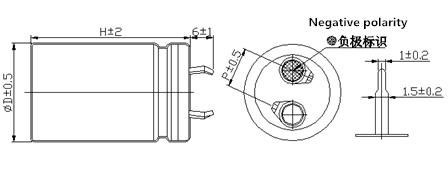

HT -5R5(Connection plate)
|
Model |
Capacity F |
ESR mΩ |
Product size (mm) |
||||
|
DC |
AC 1kHz |
Width |
Length |
Height |
Pitch |
||
|
HT-5R5-Z334VYL06 |
0.33 |
2200 |
1100 |
8.5 |
16.5 |
15 |
12 |
|
HT-5R5-Z474TYL16 |
0.47 |
2200 |
1100 |
7 |
13.5 |
12 |
9 |
|
HT-5R5-Z474VYL06 |
0.47 |
1200 |
600 |
8.5 |
16.5 |
15 |
12 |
|
HT-5R5-Z105VYL07 |
1.00 |
960 |
480 |
8.5 |
16.5 |
twenty two |
12 |
|
HT-5R5-Z155VYL07 |
1.50 |
560 |
280 |
8.5 |
16.5 |
twenty two |
12 |
|
HT-5R5-Z155VYL13 |
1.50 |
560 |
280 |
10.5 |
20.5 |
twenty two |
15.3 |
|
HT-5R5-Z205VYL13 |
2.00 |
400 |
200 |
10.5 |
20.5 |
twenty two |
15.3 |
|
HT-5R5-Z205VYL09 |
2.00 |
360 |
180 |
13 |
25.5 |
twenty three |
17.8 |
|
HT-5R5-Z255TYL07 |
2.50 |
360 |
180 |
8.5 |
16.5 |
twenty two |
12 |
|
HT-5R5-Z255VYL13 |
2.50 |
360 |
180 |
10.5 |
20.5 |
twenty two |
15.3 |
|
HT-5R5-Z255UYL04 |
2.50 |
360 |
180 |
8.5 |
16.5 |
26 |
12 |
|
HT-5R5-Z305VYL13 |
3.0 |
300 |
150 |
10.5 |
20.5 |
twenty two |
15.3 |
|
HT-5R5-Z355VYL09 |
3.50 |
280 |
140 |
13 |
25.5 |
twenty three |
17.8 |
|
HT-5R5-Z355UYL13 |
3.50 |
280 |
140 |
10.5 |
20.5 |
twenty two |
15.3 |
|
HT-5R5-Z405VYL09 |
4.0 |
240 |
120 |
13 |
25.5 |
twenty three |
17.8 |
|
HT-5R5-Z505UYL11 |
5.0 |
240 |
120 |
10.5 |
20.5 |
27 |
15.3 |
|
HT-5R5-Z505VYL09 |
5.0 |
220 |
110 |
13 |
25.5 |
twenty three |
17.8 |
|
HT-5R5-Z505VYL10 |
5.0 |
220 |
110 |
13 |
25.5 |
27 |
17.8 |
|
HT-5R5-Z505VYL12 |
5.0 |
220 |
110 |
10.5 |
20.5 |
32 |
15.3 |
|
HT-5R5-Z505VYL19 |
5.00 |
220 |
110 |
13 |
25.5 |
36 |
17.8 |
|
HT-5R5-Z605VYL19 |
6.0 |
160 |
80 |
13 |
25.5 |
36 |
17.8 |
|
HT-5R5-Z905UYL10 |
9.0 |
120 |
60 |
13 |
25.5 |
27 |
17.8 |
|
HT-5R5-Z106VYL19 |
10 |
120 |
60 |
13 |
25.5 |
36 |
17.8 |
|
HT-5R5-Z106VYL21 |
10 |
120 |
60 |
16.5 |
32.5 |
28 |
twenty four |
|
HT-5R5-Z126VYL21 |
12 |
120 |
60 |
16.5 |
32.5 |
28 |
twenty four |
Typical Application
|
Series |
Application range |
Instance |
|
SP, LR, HP, HT |
Backup power |
RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc. |
|
SE, HP, HE |
Energy storage |
Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment |
|
SE Coin type, HE |
Energy storage |
Flashlights, water meters, gas meters, taillights, small appliances, etc. |
|
HP、LR |
High power support |
Wind power, locomotive start, ignition, electric vehicles, etc. |
|
MK |
Backup power High current operation |
Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system |
Are you looking for 5.5V high temp Capacitors?
As one of the most professional super capacitor manufacturers of supercapacitor ultracapacitor, we have been devoting ourselves in providing high quality edlc capacitor with competitive price. If you want to buy ultracapacitor, don't hesitate to contact.
