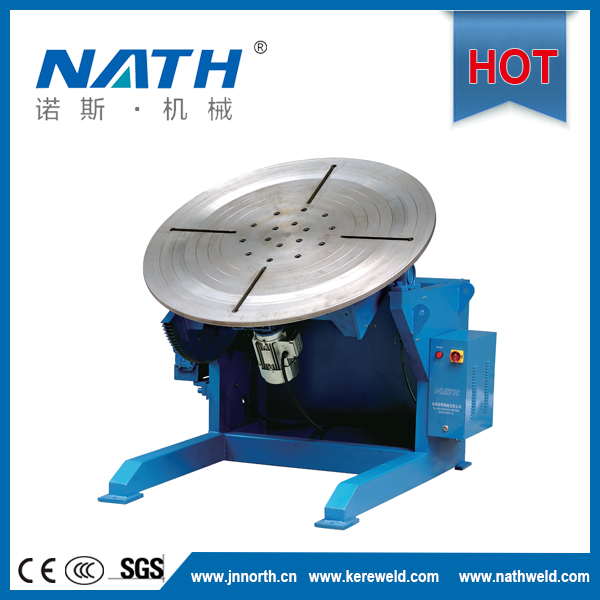

5t stainless steel consturcture welding machine-welding positioner
MAIN FEATURES
1) Strong and durable construction which configured the top-class electronic components.
2) High stability,strong anti-electromagnetic and capacity.
3) The rotation structure is driven by the DC motor, while stepless speed regulation can be achieved.
4) The positioner turning structure of worm and gear has the function of self-lock, and the worktable can be stepless turned from 0 degree to 90 degree.
5) Special design of anti-electromagnetic which reduce the high frequency interference of TIG's welding,and can improve the welding quality effectively.
6)Stepless adjustable speed.
7)Strong and durable construction which configured the top-class electronic components.
8)High stability,strong anti-electromagnetic and capacity
SPECIFICATIONS
|
型号 Model |
BY-5000 |
|
输入电源 Input power |
AC 380V 50/60HZ |
|
回转驱动电机 Rotation Motor |
AC 2.2KW |
|
翻转驱动电机 Tilt Motor |
AC 4.0KW |
|
最大承载能力 Max Capacity |
5000KG |
|
最大重心距 Rated Center of Gravity |
300mm |
|
最大偏心距 Rated Eccentricity |
200mm |
|
工作台直径 Table Dimension |
1500mm |
|
工作台转速 Rotation Speed |
0.05-0.5 rpm |
|
工作台翻转速度 Tilt Speed |
0.5 rpm |
|
工作台翻转角度 Tilt Angle |
0-120° |
|
工作台翻转方式 Work Mode |
电动 Motor Drive |
|
最大回转直径 Max.Rotation Dia. |
2500mm |
FAQ
1. QUESTION: Are you reliable manufacturer?
ANSWER: Yes, we are specialized in welding and cutting equipment for many years, we do business with more than 30 countries.
2. QUESTION: What about your warranty?
ANSWER: We make sure all of our machines with good quality, and our warranty is 1 year, we will provide the parts to you by DHL or TNT freely for any quality problems.
3. QUESTION: What about the packing for transport?
ANSWER: For LCL( (less than container load ) must use wooden box to prevent damage, and FCL(full container load) customers can choose wooden box or not as per requirements, we are experienced in it.
4. QUESTION: Are your price the cheapest?
ANSWER: We don't know if our price is the cheapest in the industry, but we always offer our best price to you.
Different price with different quality, so we just can make sure our price is equative with our quality.
5. QUESTION: Can your machines be customized?
ANSWER: Yes. we have a strong design team ,we can customized for you as per your requirements
