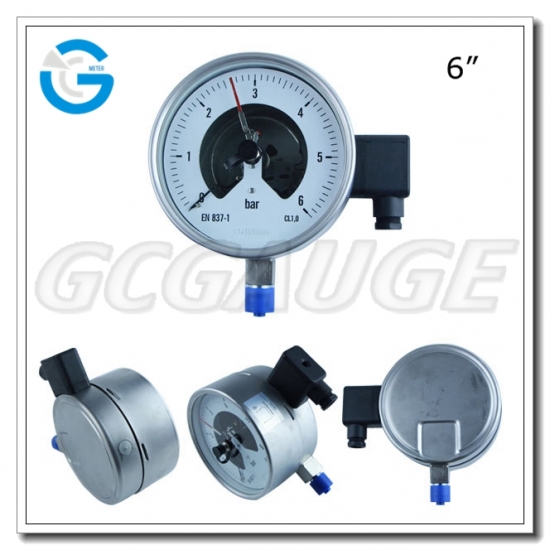

6 Inch All Stainless Steel Bottom Connection Electric Contact Pressure Gauges
Both 6 inch gauges are filled with oil for vibrtion-proof indication, suitable for the adverse service conditions where sharp pulsation and vibration exist.
Specifications of 6 Inch All Stainless Steel Bottom Connection Electric Contact Gauges
Dial |
4”, 6” |
Case |
Stainless steel |
Lens |
Common glass or Safety glass |
Ranges |
Minimum: 0~0.1Mpa |
Maximum: 0-100Mpa |
|
Minimum negative pressure: -0.1Mpa |
|
Maximum negative pressure: -0.1~2.4Mpa |
|
Accuracy Class(Indication) |
1.0%;1.5% |
Accuracy Class(Setting) |
4% |
Quantity of Contacts |
1 or 2, (Φ 100mm, 3 or 4 contacts available) |
Maximum Working Voltage |
AC380V or DC220V |
Maximum Current |
1A |
Contact Power |
30VA |
Connection Size |
M20 × 1.5 Customized connection |
Protection Class |
IP 65 |
Temperature Effects |
When temperature deviates from 20 ± 5℃, the error of set point is not more than 0.6%/10℃ |
As a digital pressure gauge factory, we can offer knds of mini high pressure gauge for sale, if you have needs, please leave us a message.
