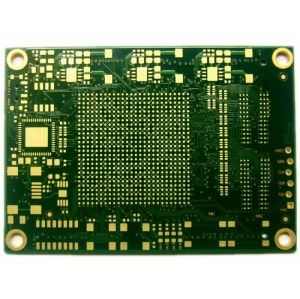

6 Layer 3oz Inner&outer Copper Pcb Circuit Boards

PCB board SpecificationsPcb thickness: 2.0mmLayer account: 6-LayerSurface finished: immersion gold;Line width&space6/8milsFinished copper: 3ozSolder mask: green;Material: FR4.Certificates: CQC,ISO.TS16949,SGS,ISO9001,UL,ISO.14001,ROHSDelivery time: sample 3-5days,mass production: 12-14days;Package details: vacuum pcb,inside bubble all inside,cartoon,ties outside strengthening;KDPCB Advantages1--dont set any moq;2--shortest response for all clients need;3--reasonable competitive price with high quality;4--support "one-stop"service for part of clients;5--shortest delivery time on pcb board production;6--"5S"and ISO.TS16949 quality system control manufacture;7--professional,high communication,trustworthy;8--all kinds of pcb board manufacture are acceptable;9--lower price TNT/UPS/DHL/FEDEX/special shipping agency support;what's heavy printed circuit board ?the copper thickness ,no matter inner copper or outer copper,if over 3oz(105um),we call it heavy pcb board.The mainly controls the difficultiesits line width and line space;the copper more thick,the line width and line space requirement more higher;heavy copper pcb advantagesThe thicker of the copper of the circuit boards,Products of heat dissipation more better.The thicker the copper can carry more greater current.why choose heavy copper pcb board ?1-Elimination of complex wired buss configurations2-Increased electric current carrying capacity3-Increased endurance to thermal strains4-Optimized use of exotic high temperature materials with lower probability of circuit failure5-Ability to incorporate multiple copper weights on the same layer of circuitry (layer count reduction)6-Added copper plating in the heat vias (thermal resistance reduction)7-Selective areas plated with heavy copper can function as a heat sink or interface to cold plate (built-in heat sinks)8-Integration of high-current circuits and control circuits on a single PCBKDPCB pcb manufacturer has years heavy copper circuit boards manufacturing experience since 2006 build KDPCB company,all kdpcb engineers was working in HDI pcb for over 10 years,which most of them also have lot of practise of industry electronics pcb manufacture,they also tech some china unversity students how to produce it with better method.kdpcb is a qulity oriented pcb manufacturer in china,never price firstly,our purpose is to be a global stragetic pcb manufacturer,we always use the famous pcb material supplier,and build a long term relationship with them,that's why kdpcb is difference from others pcb suppliers in china.application fieldPosition control systems,Power grid switching systems,HVAC systems,Energy storage and power grid back up,Nuclear power applications,Line reactors,Hydro-electric plants,Surge protectors,Fuse blocks,Welding Equipment,Weapons control systems,Radar systems and others. url: http://www.kd-pcb.com
