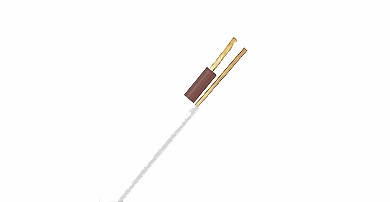

6241B LSZH Single Cores +Earth Cable
Cu/LSZH/LSZH 6241B are the electric cables referred to thermosetting insulated and thermoplastic sheathed cables for voltage 300/500V electric power and lighting and having low emission of the smoke and corrosive gases when affected by the fire.624-B refers to thermosetting insulated and sheathed cables, single-core 6241b cable, flat twin-core 6242B, flat 3-core 6243B, with circuit protective conductor (CPC) 300/500V. The conductor is annealed copper conductor of class 1 or class 2. The maximum size is up to and including 16 mm². We supply the cables according to BS7211.
6241B LSZH Single Cores +Earth Cable Parameter
No. of Cores x Nominal Cross-Sectional Area Nominal thickness of insulation Nominal thickness of sheath Nominal overall dimensions Circuit protective conductor Nominal Weight Minimum insulation resistance at 90 °C
# x mm² mm mm lower limit mm upper limit mm AWG kg/km MΩ·km
1 × 1.0 0.7 0.9 4.1 × 5.2 5.0 × 6.3 17 45 0.011
1 × 1.5 0.7 0.9 4.4 × 5.4 5.3 × 6.6 17 55 0.011
Description Of 6241B LSZH Single Cores +Earth Cable
Rated voltage: 300/500v
Test voltage: 2000 volts
Max Flexing bending radius: 15 x Ø
Operating temperature: +5 ºC to +90 ºC
Short circuit temperature: +250 ºC
Flame retardant standard: IEC 60332.1
Smoke density acc. to EN 50268 / IEC 61034
Flame test and Flame-retardant according to EN 50265-2-1, IEC 60332.1
Application Of 6241B LSZH Single Cores +Earth Cable
6241 B LSZH cables are widely used in domestic and industrial power or lighting system. They normally installed in conduit and trunking or can be surface nounted if used as earth cable. They are good options for using in public buildings to reduce the threat to life and equipment cased by smoke and toxic fumes. They can't be installed incontrete without mechanic protection.As a professional electric wire supplier, JENUIN has high-quality xlpe wire for sale. Welcome to contact us if needed.
Personne à contacter : Kwok Peter, +86 0757 85682768
