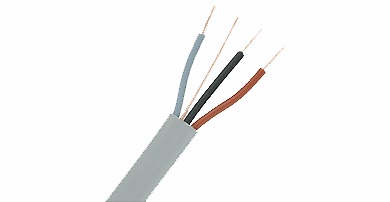

6242B 6243B LSZH Flat Cores +Earth Cable

CU/LSZH/lszh flat cable are the electric cables referred to thermosetting insulated and thermoplastic sheathed cables for voltage 450/750V electric power and lighting and having low emission of the smoke and corrosive gases when affected by the fire.

624-B refers to thermosetting insulated and sheathed cables, single core 6241B cable, flat twin-core 6242B cable, flat 3-core 6243B cable, with circuit protective conductor (CPC) 300/500V. The conductor is annealed copper conductor of class 1 or class 2. The maximum size is up to and including 16 mm². We supply the cables according to BS7211.

6242B 6243B LSZH Flat Cores +Earth Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal thickness of insulation Nominal thickness of sheath Nominal overall dimensions Circuit protective conductor Nominal Weight Minimum insulation resistance at 90 °C

# x mm² mm mm lower limit

mm upper limit mm AWG kg/km MΩ·km

17 1 × 1.0 0.7 0.9 4.1 × 5.2 5.0 × 6.3 17 45 0.011

16 1 × 1.5 0.7 0.9 4.4 × 5.4 5.3 × 6.6 17 55 0.011

6242B

17 2 × 1.0 0.7 0.9 4.1 × 7.6 5.0 × 9.1 17 68 0.011

17(7/26) 2 × 1.0 0.7 0.9 4.2 × 7.8 5.1 × 9.4 17 73 0.011

16 2 × 1.5 0.7 0.9 4.4 × 8.1 5.3 × 9.7 17 85 0.011

16(7/24) 2 × 1.5 0.7 0.9 4.5 × 8.3 5.4 × 10.0 17 90 0.011

14 2 × 2.5 0.7 1.0 4.9 × 9.3 6.0 × 11.2 16 120 0.0092

14(7/22) 2 × 2.5 0.7 1.0 5.0 × 9.5 6.1 × 11.4 16 125 0.0084

12(7/20) 2 × 4 0.7 1.0 5.5 × 10.4 6.7 × 12.6 16 175 0.0070

10(7/18) 2 × 6 0.7 1.1 6.2 × 12.0 7.5 × 14.6 14 240 0.0059

8(7/16) 2 × 10 0.7 1.2 7.3 × 14.5 8.8 × 17.6 12(7/20) 390 0.0047

6(7/14) 2 × 16 0.7 1.3 8.4 × 17.0 10.1 × 20.5 10(7/18) 560 0.0039

6243B

17 3 × 1.0 0.7 0.9 4.1 × 10.0 5.1 × 12.1 17 91 0.011

16 3 × 1.5 0.7 0.9 4.4 × 10.7 5.3 × 12.9 17 115 0.011

14 3 × 2.5 0.7 1.0 4.9 × 12.0 6.0 × 14.6 17 170 0.0092

12(7/20) 3 × 4 0.7 1.0 5.5 × 14.0 6.7 × 16.9 16 196 0.0070

10(7/18) 3 × 6 0.7 1.1 6.2 × 16.2 7.5 × 19.5 14 291 0.0059

8(7/16) 3 × 10 0.7 1.2 7.3 × 19.5 8.8 × 23.6 12(7/20) 440 0.0047

6(7/14) 3 × 16 0.7 1.3 8.4 × 22.8 10.1 × 27.6 10(7/18) 670 0.0039

Description of 6242B 6243B LSZH Flat Cores +Earth Cable

Rated voltage: 300/500v

Test voltage: 2000 volts

Max Flexing bending radius: 15 x Ø

Operating temperature: +5 ºC to +90 ºC

Short circuit temperature: +250 ºC

Flame retardant standard: IEC 60332.1

Smoke density acc. to EN 50268 / IEC 61034

Flame test and Flame-retardant according to EN 50265-2-1, IEC 60332.1

Application Of 6242B 6243B LSZH Flat Cores +Earth Cable

6241 B LSZH cables are widely used in domestic and industrial power or lighting system. They normally installed in conduit and trunking or can be surface nounted if used as earth cable. They are good options for using in public buildings to reduce the threat to life and equipment cased by smoke and toxic fumes. They can't be installed incontrete without mechanic protection.
