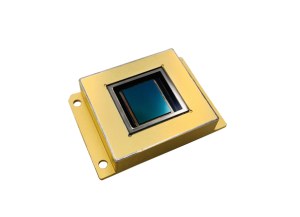

640 InGaAs VGA Area Sensor
Quantité : 10-1000 pc Prix : USD9,000 - USD 18,00
GH-SW640 InGaAs area image sensors are two-dimensional image sensors that have a hybrid structure consisting of a CMOS readout circuit (ROIC: readout integrated circuit) and back-illuminated InGaAs photodiodes for short wavelength infrared (SWIR, 900nm-1700nm) and extended wavelength infrared (Vis-SWIR, 400nm-1700nm) regions.
The detector can be supplied in two types of metallic package:
Nitrogen & Vacuum, which both include a Thermo-Electric Cooler (TEC)
It is well-adapted to a large range of applications, such as surveillance, hyperspectral imaging, remote sensing, machine vision, industrial sorting, process inspection, and science.
TECHNICAL INFORMATION OF GH-SW640
|
Key Features |
GH-SW640 |
|
Sensor Type |
InGaAs PIN-Photodiode |
|
Format |
640x512 |
|
Pixel Pitch |
15μm |
|
Spectral Response |
0.9µm-1.7µm / 0.4um-1.7µm (optional) |
|
Integration Type |
Snapshot |
|
Readout Modes |
ITR, IWR, CDS |
|
Exposure Time |
2μs to full frame |
|
Maximum Full Frame Rate |
300 Hz |
|
Maximum Pixel Rate |
20MHz |
|
Output Signal Swing |
≤2V |
|
Temperature Sensor Output |
Yes |
|
Quantum Efficiency(QE) |
>70% (1.0um-1.6um） |
|
Noise with ROIC |
35e- @HG |
|
Dark Current |
30fA@0.1V&18℃ |
|
Array Operability |
> 99.5% (Minimum) |
|
Non Uniformity without Correction |
<5%</span> |
|
Dimension (W x H x D) |
36mm × 25.4mm × 7.2mm |
|
Windows |
Quartz / Sapphire |
|
Number of Pins |
28-pin Metal DIP Package |
|
Packaging Characteristics |
Hermetically sealed |
|
Operating Temperature |
- 40℃ to 70℃ |
|
Storage Temperature |
- 40℃ to 70℃ |
As a professional ir camera manufacturer, Zillion Techs provides vga swir camera, swir short wave infrared, swir camera, etc. If you want to know swir wavelength range or more, Contact us.
Personne à contacter : techs zillion, +86 18589063051
