640 SWIR InGaAs High Cost-Performance Camera USB3.0
Quantité : 1000 units Prix : 5,000USD-10,000USD
This camera using SWIR technology independently developed and designed by GHOPTO has a resolution of 640×512, 15μm pixel pitch, and is equipped with a USB3.0 interface. It can achieve a high frame rate of 240fps and 14-bit digital output at the resolution of 640×512. Windowing (optional) realizes higher rate picture transmission. The USB3 vision has TE Cooler built in and lower dark current, and the readout noise is as low as 40e-. In addition, the camera has a variety of gain modes and non-uniformity correction, which can improve high-definition images in low light conditions at night, and can also image through fog and haze. Small in size and light in weight, it is easy to integrate in surveillance systems such as drones, shipborne, and airborne optoelectronic pods. It is widely used in wafer inspection, surveillance, hyperspectral imaging and other fields.
PERFORMANCE ADVANTAGES OF GH-SW640-U3
01. Compact industrial design
02. Automatic on-board image processing
03. Region of interest (ROI) control
04. Single point correction of electronic shutter
05. VGA/QVGA resolution
06. Small size, light weight and low power
FEATURES OF GH-SW640-U3
- High frame rate, 240fps @ 640×512
- TEC
- Low read noise
- Low dark current
- USB3.0
- Windowing
- Low power dissipation
- SDK provided
TECHNICAL INFORMATION OF GH-SW640-U3
|
TYPE |
GH-SW640-U3 |
|
|
Array Type |
InGaAs |
|
|
FPA Format |
640×512 |
|
|
Active Area |
9.6mm×7.68mm |
|
|
Pixel Pitch |
15μm |
|
|
Lens Mount |
M42×1 |
|
|
Spectral Response |
0.9μm-1.7μm (Optional 0.4μm -1.7μm ) |
|
|
Quantum Efficiency |
> 70% |
|
|
Full Well Capacity |
1.8Me- |
|
|
Cooling Capability |
TEC |
|
|
Dark Current |
30fA@0.1V&18℃ |
|
|
Output |
USB3.0 |
|
|
Digital Output |
14bit |
|
|
Frame Rate |
240fps@640×512 |
|
|
Windowing |
Programmable |
|
|
Shutter Mode |
Global shutter |
|
|
Readout Modes |
IWR |
|
|
Exposure Time |
60μs~ |
|
|
Operating Temperature |
-20°~+70° |
|
|
Weight |
280g (no lens) |
|
|
Voltage |
12V +-2V |
|
|
Dimension ( D x W x H ) |
65mm×58mm×65mm |
|
|
Power Dissipation |
<5W (no TEC)</p> |
|
|
Trigger Interface |
RS-422 / TTL compatible |
|
|
Noise with ROIC |
<40e-(CDS mode) |
|
|
Image Correction |
1-point & 2-point correction |
|
|
Software |
SDK provided |
|

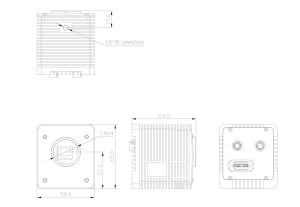

DRAWING OF GH-SW640-U3
