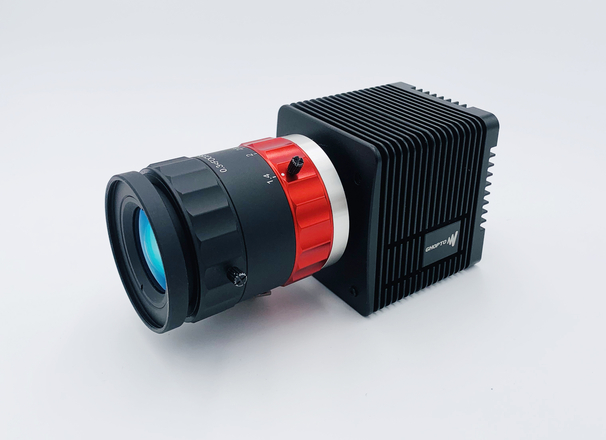

640 SWIR InGaAs High Cost-Performance Camera GigE
Quantité : 10-1000 pc Prix : USD9,000 - USD 18,00
Zillion Techs SWIR camera is based on an in-house developed InGaAs detector with multiple resolutions. The compact GH-SW640-GigE meets requirements of high sensitivity in the SWIR range from 900nm to1700nm and with accompanied by extended wavelength from 400nm to 1700nm options. The camera comes with PAL output and GigE vision interface, supporting 14-bit data transfer and adjustable exposure time. The Short-Wave Infrared (SWIR) GigE/GIG-E vision camera offers unique capabilities for various applications in Industrial inspections as nondestructive test, Si wafer inspection, semiconductor circuit detection, laser beam profiling and process monitoring.
PERFORMANCE ADVANTAGES OF 640 SWIR INGAAS GIGE VISION CAMERA
- High-performance Gige network InGaAs camera
- High dynamic range and high frame rate
- Automatic on-board image processing
- Region of interest (ROI) control
- Single point correction of electronic shutter
- Optional screen windowing function
TECHNICAL INFORMATION OF 640 SWIR INGAAS GIGE VISION CAMERA
|
Type |
GH-SW640-GigE |
|
Array Type |
InGaAs |
|
FPA Format |
640 x 512 |
|
Spectral Response |
0.9 ~ 1.7 / 0.4 ~ 1.7μm( optional ) |
|
Pixel Pitch |
15μm |
|
Active Area |
9.6mm x 7.68mm |
|
Quantum Efficiency |
＞70%（1.0 ~ 1.6μm） |
|
Frame Rate |
100 Hz |
|
Integration Type |
snapshot |
|
Integration Time Range |
50 μs ~ 20 ms /100Hz maximum integral: 9ms |
|
On-board Image Processing |
One/two-point correction、bad pixel replacement、image denoising 、image smoothing, controllable shutter compensation |
|
Operability |
＞99.5% |
|
Dynamic Range |
76 dB( linear mode ) |
|
Charge handing capacity |
1.7×104 e-（@HG,1.8V） |
|
ADC |
14bit |
|
Analog Output |
PAL、SMA |
|
Digital Output |
GigE |
|
Image Acquisition |
GUI / SDK |
|
Trigger |
Trigger RS485（optional） |
|
Power Input |
DC 12V |
|
Power Consumption |
＜4W（noTEC） |
|
Lens Mount |
C-Mount |
|
Operating Temperature |
-20 ℃ ~ +50 ℃ / -40 ℃ ~ +60 ℃（optional） |
|
Storage Temperature |
-40 ℃ ~ +80 ℃ |
As one of the most professional image sensor companies, Zillion Techs provides swir ingaas, gigabit camera, gige vision 2.0, 10 gige vision, gig e vision, 10 gige camera, gig e camera, gige vision camera, usb infrared camera, swir sensor, etc. If you want to know swir applications or more, Contact us.
Personne à contacter : techs zillion, +86 18589063051
