640 SWIR InGaAs High Cost-Performance Camera Link

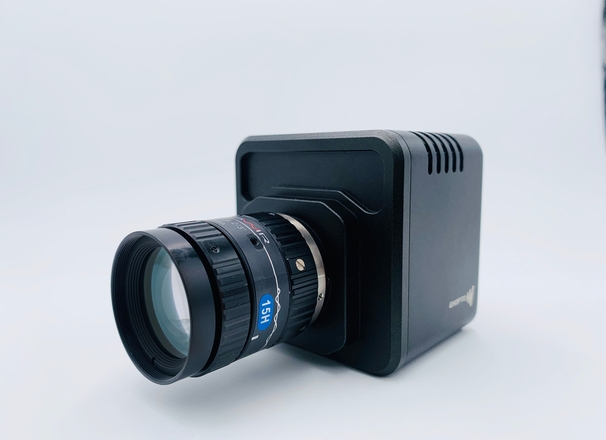

Zillion Techs InGaAs SWIR camera is based on an in-house developed InGaAs detector with multiple resolutions. The compact GH-SW640-CL meets requirements of high sensitivity in the SWIR range from 900nm to1700nm and with accompanied by extended wavelength from 400nm to 1700nm options. The extended InGaAs camera comes with PAL output and Camera Link vision interface, supporting 14-bit data transfer and adjustable exposure time. As one of the leading swir camera manufacturers, Zillion Techs SWIR camera offers unique capabilities for various applications in Industrial inspections as nondestructive test, Si wafer inspection, semiconductor circuit detection, laser beam profiling and process monitoring.
For swir price detail, please feel free to contact us.
TECHNICAL INFORMATION OF SWIR INGAAS CAMERA
|
Type |
GH-SW640-CL |
|
Array Type |
InGaAs |
|
Spectral Response |
0.9 ~ 1.7 / 0.4 ~ 1.7μm( optional ) |
|
FPA Format |
640 x 512 |
|
Pixel Pitch |
15μm |
|
Active Area |
9.6mm x 7.68mm |
|
Quantum Efficiency |
＞70 %（1.0 ~ 1.6μm） |
|
Frame Rate |
100Hz / 200 Hz （optional） |
|
Integration Type |
snapshot |
|
Integration Time Range |
50 μs ~ 20 ms / 100Hz maximum integral: 9ms |
|
On-board Image Processing |
One/two-point correction、bad pixel replacement、image denoising 、image smoothing, controllable shutter compensation |
|
Operability |
＞99.5% |
|
Dynamic Range |
76 dB( linear mode ) |
|
Charge handing capacity |
1.7×104 e-（@HG,1.8V） |
|
ADC |
14bit |
|
Analog Output |
PAL |
|
Digital Output |
SDR 26 pin connector，Base Camera Link |
|
Image Acquisition |
GUI / SDK |
|
Trigger |
CameLink CC1 input（lag＜ 1us） |
|
Serial Port Controller |
Camera link SerTC, SerTFG, baud rate: 115200 bps |
|
Power Input |
DC 8-24V |
|
Power Consumption |
＜3W （no TEC） |
|
Lens Mount |
C-Mount |
|
Operating Temperature |
-20 ℃ ~ +50 ℃ / -40 ℃ ~ + 60 ℃（optional） |
|
Storage Temperature |
-40 ℃ ~ + 80 ℃ |
Now the ingaas camera price is low, if you want to buy extended ingaas camera , please contact us.
