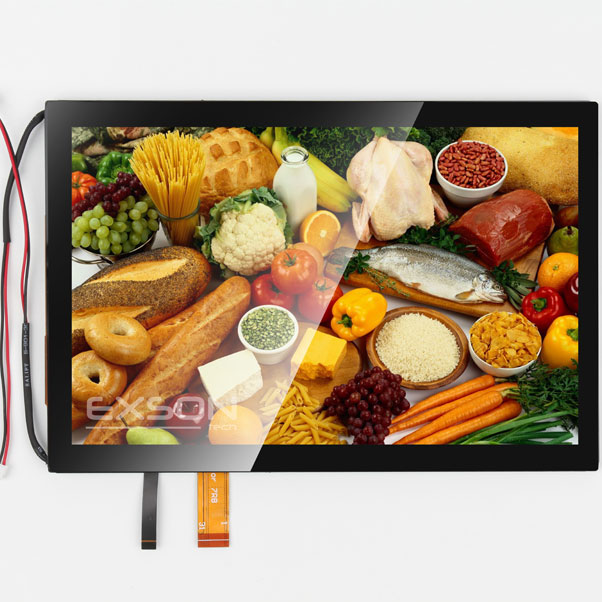

7.0 Inch 1200x1920 WUXGA 40PIN MIPI IPS 1500nits TFT LCD Display Module

This module is color active matrix TFT LCD display that uses Low-temperature poly-silicon TFT as a switching device. It is composed of a TFT LCD cell, IC, FPC, Backlight and CTP. And it has a 7.02(10: 16) inch diagonally measured active display area with WUXGA(1200 horizontal by1920 vertical pixel) resolution.

General Specifications of 7.0 Inch 1200x1920 WUXGA 40PIN MIPI IPS 1500nits

No.

Item

Specification

1

LCD size

7.02inch

2

Resolution

1200 (RGB)X1920

3

Display mode

Normally black

4

Pixel pitch

0.07875RGB(W)X0.07875(H) mm

5

Active area

94.50 (W)X151.20(H) mm

6

Module size

111.26(W)X166.60(H)X5.34 (D)mm

7

Pixel arrangement

RGB-stripe

8

Interface

MIPI

9

Backlight power consumption

11.68 w

10

Panel power consumption

Typ. 0.14 w (max. 0.17w)

If you want to know more kinds of wuxga lcd display, wuxga tft display, please visit our website.

As a tft display factory, we will do our best to meet all the needs of customers.
