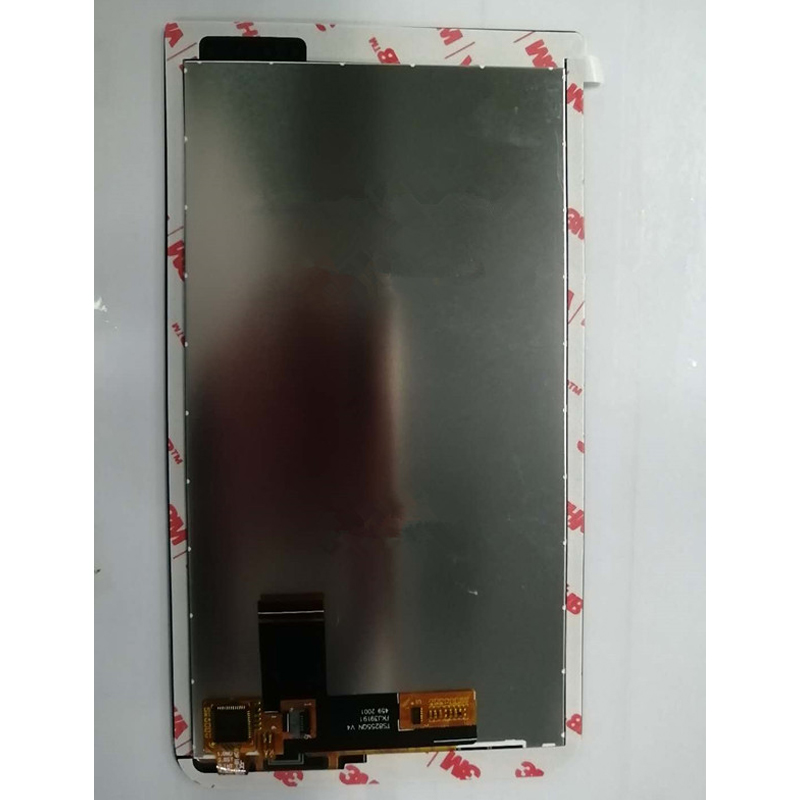

720x1280 Resolution 5.5 Inch MIPI Interface IPS Touch Screen
Kingtech 5.5inch IPS/free/all/wide/full viewing angle TFT LCD screen panel has a high resolution for 720x1280.
This 5.5inch mipi dsi interface lcd display has capacitive touch, we can also custom LCD screens according to the customer's requirements. The 5.5inch lifetime can reach 30000 hours and the brightness is 390nits.
Features of 720x1280 Resolution 5.5 Inch MIPI Interface Display
All/Free/Wide viewing angle
720x1280 resolution
IPS type
MIPI 2 lanes and MIPI 4 lanes
Support TFT capacitive touchscreen
Specification of 720x1280 Resolution 5.5 lcd display
|
Item |
5.5inch 720x1280 IPS display |
|
Model No |
PV05505TD39C-C |
|
Resolution |
720x1280 |
|
Outline Dimension |
144.4(W)x79(H)x2.84(T) |
|
Active Area(mm) |
68.04(H)x120.96(V) |
|
Interface |
MIPI-4Lanes |
|
Driver IC |
ST7703 |
|
Viewing Angle |
All |
|
LED life |
30000h |
|
Display Mode |
Transmission / Normally Black |
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-30℃~80℃ |
|
Brightness |
390nits |
|
Touch screen |
Capacitive touch screen |
Application of 720x1280 Resolution 5.5 Inch MIPI Interface IPS Touch Screen
The 5.5inch 720x1280 IPS/free/all/full/wide LCD module can be used for 3D printers, medical devices, handheld equipment, industrial control, smart Home, POS machine, and a black box.
As a company lcd, we will provide more sorts of related products for sale, anything you need, please contact us.
