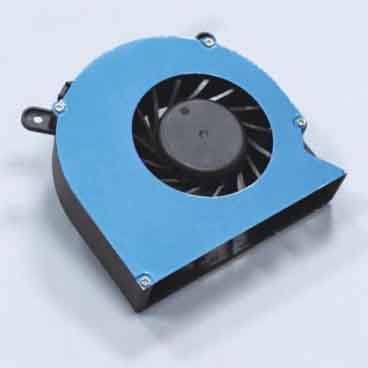

75-130mm Centrifugal Blowers
WHEE DC quiet centrifugal fans with high efficiency, low noise, stepless speed regulation, soft start, smooth operation, long life, energy saving and other characteristics.
Voltage range (model) : 5V/12V/24V/36V/48V.Built-in "soft start" function module, no starting impulse current, effective protection control system electrical components.
75-130mm Centrifugal Blowers Functions
FG: FG Signal
RD: RD Signal
PWM: PWM Signal
VC: Voltage Control
TC: Temperature Control
75-130mm Centrifugal Blowers Specifications
|
BEARING TYPE |
F.D. Bearing /One ball /Sleeve bearing/ Two ball |
|
FRAME |
P B T. UL94V-0 |
|
IMPELLER |
P B T. UL94V-0 |
|
P C B |
UL94V-0 |
|
MATERIAL LIST |
RoHS Compliant |
|
OPERATING TEMPERATURE |
-10 ℃ ~ + 70 ℃ |
|
STORAGE TEMPERATURE |
-40 ℃ ~ + 70 ℃ |
|
DIELETRIC STRENGTH |
Applied a 500VAC for 1.0 minute or 600VAC for 2 seconds between housing and both lead wires. |
|
INSULATION RESISTANCE |
At least 10 MΩ at 500VDC between internal stator and both lead wires. |
|
LIFE EXPECTANCY |
30,000(S)/40,000(F)/50,000 hrs(2B) in running conditions at 40℃ ambient. |
75-130mm Centrifugal Blowers List
75*75*6.7 DC Centrifugal Blowers
75*75*15 DC Centrifugal Blowers
75*75*30 DC Centrifugal Blowers
80*80*18 DC Centrifugal Blowers
80*80*20 DC Centrifugal Blowers
97*97*33 DC Centrifugal Blowers
97*97*33-2 DC Centrifugal Blowers
WHEE is a leading motor cooling fan manufacturer in China, focusing on DC brushless motor cooling fans/cooler and modular design, on products including industrial cooling fan, universal cooling fan china, DC axial fans, centrifugal blowers, frameless fans, micro fans, CPU cooler, and thermal module. Cooperative manufacturer of systematic OEM/ODM products.
