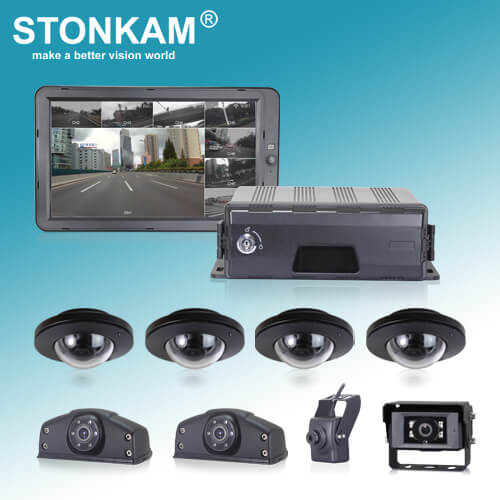

8 canaux HD 1080P voiture DVR
- Support 8 channel AHD 1080P input and HD HDMI 1080P output
- 8x1080P, 8x720P, 8xD1 and 8 mixed-resolution recording, with 15 seconds pre-recording function
- Start trigger recording, timer trigger recording, motion trigger recording, G-force trigger recording, over-speeding trigger recording, 8-channel customized alarm input trigger recording, remote control trigger recording
- 3G/4G/WIFI/GPS tracking technology,platform-side CMS server, IOS, Android and windows Client network client, can achieve real remotely monitoring
- WIFI support STATION and AP mode; AP mode can support that mobile directly connect to devices, and is easy for preview and configuration at mobile terminal
- Alarm recording, alarm information, log information, GPS trajectory, real-time videos and pictures remotely automatic uploading, remotely intelligent data analysis and management
- Various storage types: HDD, SSD, SD card can be all supported
- Support dual stream, sub-stream backup and network transmission
- Supports six-axis acceleration sensor
- Support touch-screen and infrared remote control
- Well protected by Super-capacitor
- Shockproof: MIL-STD 810G
- Waterproof hard disk box
Specification
|
System |
Operating system |
Linux |
|
Operating interface |
Graphical menu operation interface(OSD) |
|
|
Video permission |
Administrator & user setting |
|
|
Video |
Video input |
Max 8ch 1080P analog high definition |
|
CVBS output |
1CH 6pin aviation connector output PAL/NSTC |
|
|
HDMI output |
1CH type-A connector output, 1080P |
|
|
Video display |
1 or 4 or 8CH |
|
|
Video standard |
PAL: 25FPS, NTSC: 30FPS |
|
|
Compression |
H.264 main profile |
|
|
Total resources |
1080P PAL: 200FPS |
|
|
Audio |
Audio input |
8 channels |
|
Audio output |
1 channel |
|
|
Record format |
Synchronized video & audio recording |
|
|
Audio compression |
ADPCM |
|
|
Digital processing & storage |
Image resolution |
8*1080P(1920*1080) |
|
Image quality |
1~8 level adjustable |
|
|
Video bit rate |
128kbps~6Mbps/channel |
|
|
Storage |
56~2700MB/(channel*hour) |
|
|
Playback resolution |
8*720P or 4*1080P(encoding & decoding at the same time) |
|
|
Audio bit rate |
32kbps |
|
|
Storage |
2.5 inch SATA SSD/HDD * 1, max 2TB; SD card * 1, max 128GB |
|
|
Alarm |
Alarm input |
8 channels |
|
Alarm output |
2 channels |
|
|
Motion detection |
High/middle/low sensitivity adjustable |
|
|
Interface for communication |
IR |
1 channel |
|
RS232 |
2 channels |
|
|
RS485 |
2 channels |
|
|
CAN |
1 channel |
|
|
RJ45 |
1 channel |
|
|
USB2.0 |
1 channel |
|
|
USB3.0 |
1 channel for file backup and firmware upgrade |
|
|
Wireless |
3G/4G |
HSPDA/EVDO/FDD-LTE/TDD-LTE module optional |
|
WIFI |
optional |
|
|
WIFI hotspot/AP |
optional |
|
|
GPS |
Internal GPS/GLONASS module, coordinate/speed can be encoded in video stream and upload to server by wireless communication |
|
|
G-Sensor/Gyroscope |
Available |
|
|
Software |
Windows client |
Available |
|
iOS client |
Available |
|
|
Android client |
Available |
|
|
Web portal |
Available |
|
|
Electrical spec |
Power supply & consumption |
DC 10~32V, less than 15w(without camera) |
|
Operating temp. & humidity |
-20～70 degree/ <80%</p> |
|
|
Clock |
Built-in clock, Calendar |
|
|
Super Capacitor |
Available |
|
|
Video input impedance |
75ohm |
|
|
Video output voltage |
1Vpp CVBS output |
|
