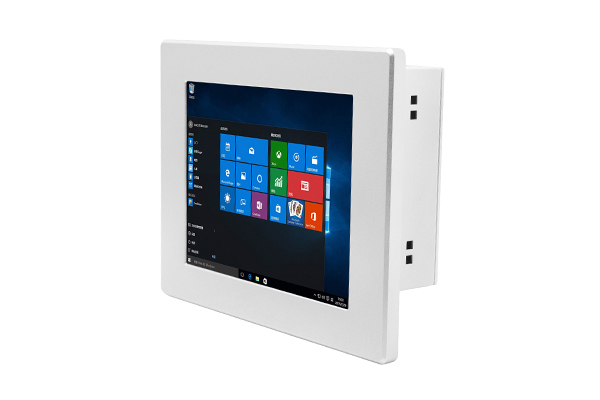

8 Inch J1900 Core I3/I5/I7 Resistive Panel PC

System Hardware

CPU

Support intel J1900/J3855/3865/Core I (6/7 th Gen.) series processor

Chipset

/

Memory

Up to 8GB

Storage

Up to 512GB

Watchdog

255 timer levels, setup by software

Display

LCD Type

8" TFT-LCD

Max. Resolution

800*600

Luminance

300 cd/m2

Viewing Angle

170°(H)*170°(V)

Contrast Ratio

400: 1

Backlight Life-Time

30000 hr（min.）

Touchscreen

Touchscreen Type

5-wire resistive

Light Transmission

>78%

Hardness

3H

OS

OS

Windows 7, Windows 10, Linux

I/O Ports

USB

3*USB 2.0 + 1*USB3.0 (Celeron J1900)

4*USB 3.0 (J3855U/3865U/Core i(6/7th Gen))

Serial port

4*RS232(1*RS422/RS485 optional )

LAN

2* RJ45 Gigabit Ethernet (Intel I211-AT)

Audio

1*Line-out, 1*Mic-in

Video

1*HDMI, 1*VGA

GPIO

4In/4Out (Occupy 1*COM, optional)

Expansion Slot

1*Mini PCIe (Wifi/BT/3G/4G optional)

Power

Power Input

9～24V DC Input (9～36V DC optional) 12V/5A power adapter

Power Consumption

/

Environment

Operating Temp.

-10℃～50℃, with airflow

Storage Temp.

-20℃～60℃

Humidity

95% @40℃, non-condensing

IP Rating

Front panel IP65 (optional)

Shock Protection

acceleration 10G/11ms

Vibration Protection

5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration

Certificate

Certificate

/

Mechanical

Dimension (W x H x D)

228*178*60.8mm

Weight

2.0kg

Color

Silver

Mounting

VESA mounting: 100*100mm

Panel mounting: 213*132mm

Dimensions
