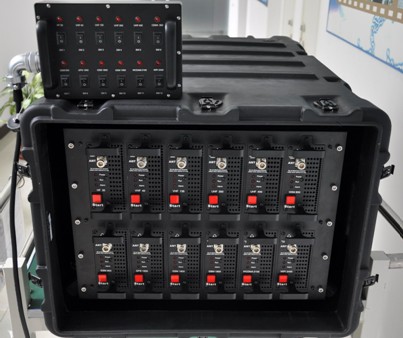

868W High Power Fully Integrated Broad Band Jamming System

High Power 868W Fully Integrated Broad Band Jamming System, it's specially customized to accommodate a fully integrated broad band jamming system which provides the ultimate solution for Military and Police convoys or VIP protection.

Specification:

• RF Frequency Band ( MHz ):
• RF Output Power( Watt )
• -20-30MHz/Radio Control Toys, Analog phones&Alarms/45W
• -30-50MHz/Radio Control Toys, Analog phones&Alarms/45W
• -135-175MHz/Walky-talky ( VHF )/55W
• -310-350MHz/Walky-talky ( UHF300 )/55W
• -400-480MHz/Walky-talky ( UHF 350 )/55W
• -800-850MHz/Walky-Talky(UHF700/800), TETRA/100W
• -850-895MHz/Cellular CDMA/TDMA,alky-Talky ( UHF800/900 )/120W
• -925-960MHz/Cellular GSM900/120W
• -1520-1580MHz/GPS & Satellite; Thuraya; Iridium; Odyssey; GlobalStar; Inmarsat; Aces; Elipso/45W
• -1805-1990MHz/Cellular HGSM1800/ DCS??Cellular GSM1900/ PCS (+ PHS )/100W
• -2110-2170MHz/Cellular UMTS / WCDMA ( 3G )/100W
• -2400-2500MHz/WLAN & Bluetooth & Wifi/28W
• Total RF Power: 868 Watt
• Antenna Type: High Gain Omnidirectional Antennas
• Power Supply Source: Additional AC Generator ( 5000W)
• Total Power Consumption ( +28VDC ): Max 7000VA
• Total System Weight: Approx.180kg
• Operating Temperature Range: -20?... +50?Operating Humidity: Up to 80%

Accessories:

• Power cable
• Antennas
• User manual
