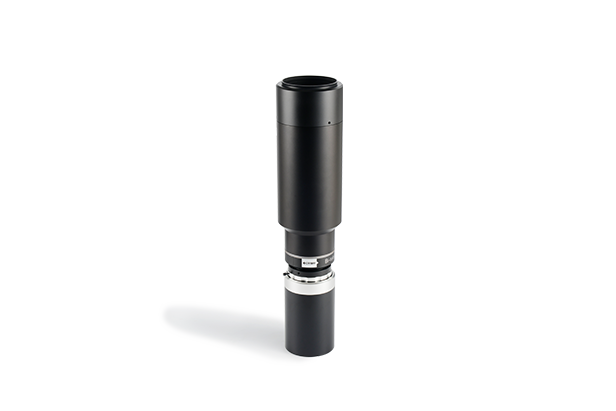

8k Line Scan (57.4mm) Telecentric Lens
Quantité : 8000pcs/mo Prix : 50usd-8000usd
Suitable for large format Area Scan Camera Line Scan Camera 16Kx3.5μm, 8Kx7μm, 8Kx5μm
Adjustable iris makes it possible to balance DOF and resolution in a perfect way
Super high resolution & low distortion
17 standard models available, various magnifications from 1.618X to 0.152X
M72 Mount, support customized mount
8k Line Scan (57.4mm) Telecentric Lens Specification
|
Model |
Optical Size |
Diagonal (mm) |
FOV Length (mm) |
Lens Length (mm) |
Max Diameter (mm) |
|
XF-PTL39057-M72-11.48-VI |
16k x 3.5μm |
57.34 |
377.2 |
1263.7 |
430 |
|
XF-PTL35057-M72-11.48-VI |
16k x 3.5μm |
57.34 |
337.3 |
1043.4 |
376 |
|
XF-PTL31057-M72-11.48-VI |
16k x 3.5μm |
57.34 |
298.6 |
971.2 |
340 |
|
XF-PTL26857-M72-11.48-VI |
16k x 3.5μm |
57.34 |
258.3 |
904.9 |
300 |
|
XF-PTL23857-M72-11.48-VI |
16k x 3.5μm |
57.34 |
230.3 |
846.3 |
270 |
|
XF-PTL19557-M72-11.48-VI |
16k x 3.5μm |
57.34 |
188 |
698.2 |
222 |
|
XF-PTL18257-M72-11.48-VI |
16k x 3.5μm |
57.34 |
175.9 |
671.8 |
210 |
|
XF-PTL15257-M72-11.48-VI |
16k x 3.5μm |
57.34 |
146.6 |
623.9 |
180 |
|
XF-PTL13757-M72-11.48-VI |
16k x 3.5μm |
57.34 |
132.4 |
584.8 |
166 |
|
XF-PTL12257-M72-11.48-VI |
16k x 3.5μm |
57.34 |
118 |
576.8 |
166 |
|
XF-PTL11057-M72-11.48-VI |
16k x 3.5μm |
57.34 |
106.4 |
538.1 |
130 |
|
XF-PTL09257-M72-11.48-VI |
16k x 3.5μm |
57.34 |
88.5 |
488.9 |
120 |
|
XF-PTL08057-M72-11.48-VI |
16k x 3.5μm |
57.34 |
77.3 |
464.2 |
104 |
|
XF-PTL06557-M72-11.48-VI |
16k x 3.5μm |
57.34 |
62.9 |
429.5 |
90 |
|
XF-PTL05557-M72-11.48-VI |
16k x 3.5μm |
57.34 |
53.1 |
413.9 |
79 |
|
XF-PTL04557-M72-11.48-VI |
16k x 3.5μm |
57.34 |
43.5 |
370.9 |
70 |
|
XF-PTL03757-M72-11.48-VI |
16k x 3.5μm |
57.34 |
35.4 |
338.8 |
70 |
As a camera lens manufacturer, we can provide kinds of industrial camera lens for sale, if you are interested, please leave us a message.
