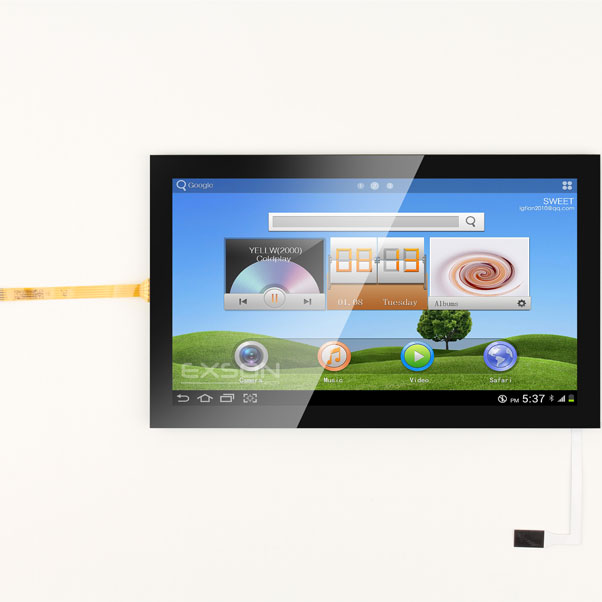

9.0 Inch 800x480 WVGA 50PIN TTL TN 1000nits TFT LCD Display Module
The EX09002-A01 is a color active matrix (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. It is composed of a TFT LCD panel, a timing controller, voltage reference, common voltage, column driver, and row driver circuit. This TFT LCD has a 9.0-inch diagonally measured active display area with resolution (800 horizontal by 480 vertical pixel array).It is suitable for industrial equipment, handheld devices, embedded system, medical equipment, etc.
General Specifications of 9.0 Inch 800x480 WVGA 50PIN TTL TN 1000nits
No. |
Item |
Specification |
1 |
LCD size |
9.0 inch |
2 |
Resolution |
800(RGB) x480 |
3 |
Active area |
198.000 (H) x111.696 (V)mm |
4 |
Module size |
211.1(H) ×128.4(V) ×6.6(D)mm |
5 |
Contrast Ratio |
20.83402778 |
6 |
Display mode |
Normally White |
7 |
Interface |
TTL |
8 |
Brightness |
1000cd/m2 |
9 |
Surface Treatment |
Anti-Glare (3H) |
10 |
Pixel Arrangement |
R.G.B. Vertical Stripe |
11 |
Support Color |
16.7M |
12 |
Viewing Direction |
6 O' clock |
Now the price of 9 inch display for raspberry pi is reasonable, if you have needs to buy 9 inch raspberry pi screen, please contact us.
As a tft module factory, we will do our best to meet all the needs of customers.
