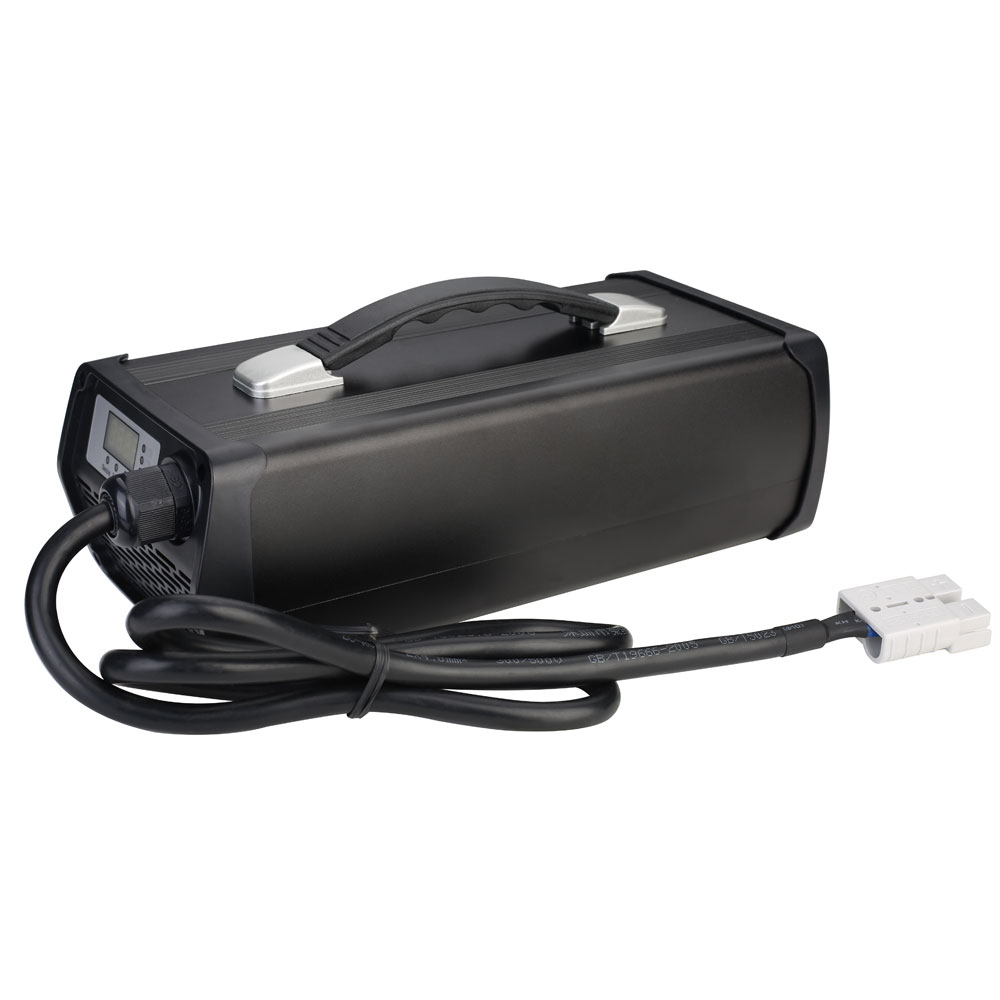

900W-1500W 12V 60A Battery Charger

Charger Model

AC Input Voltage

Battery Voltage

Max Voltage(V)

Max Current (A)

AP-PF900CH01460600

100-240

12

14.6

60

AP-PF900CH02920300

100-240

24

29.2

30

AP-PF900CH04200200

100-240

36

42

20

AP-PF900CH05460150

100-240

48

54.6

15

AP-PF900CH07140120

100-240

60

71.4

12

AP-PF900CH0840100

100-240

72

84

10

AP-PF900CH01200600

100-240

12

14.7

60

AP-PF900CH02400300

100-240

24

29.4

30

AP-PF900CH03600200

100-240

36

44.1

20

AP-PF900CH04800150

100-240

48

58.8

15

AP-PF900CH06000120

100-240

60

73.5

12

AP-PF900CH07200100

100-240

72

88.2

10

AP-PF1500CH02920400

220V

24

29.2

40

AP-PF1500CH05460250

220V

48

54.6

25

AP-PF1500CH07140200

220V

60

71.4

20

AP-PF1500CH08400160

220V

72

84

16

AP-PF1500CH02400400

220V

24

29.4

40

AP-PF1500CH04800250

220V

48

58.8

25

AP-PF1500CH06000200

220V

60

73.5

20

AP-PF1500CH07200160

220V

72

88.2

16

INPUT

AC Input Voltage Range

100V ~ 240V

AC Input Frequency

45~65HZ

AC Power Factor Correction

≥0.98

OUTPUT

Output Voltage Range

12~90V

Output Power Range

70A（Max）

VIBRATION

10～50HZ 2G 10 minutes，X，Y，Z /60 minutes

DIMENSIONS(mm)

(L)266х(W)142х(H)91

Protections

Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection

CERTIFICATIONS

CE ROHS

PACKING DETAILS

3kg/pcs

4pcs/Carton

Carton size: 475*422*375mm
