90W Universal laptop adapter with auto voltages with CE RoHS FCC Certificate
Détails
Chine (Rép. pop) Divers
Divers

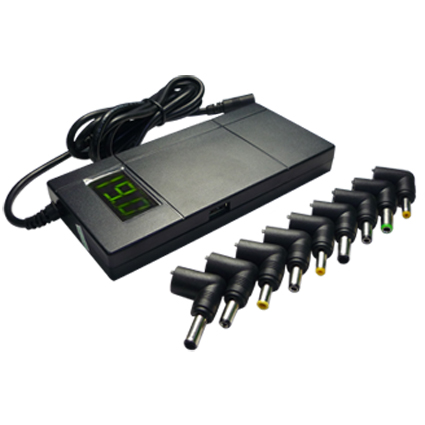

90W Universal laptop adapter with auto voltages with CE RoHS FCC Certificate

Quantité : 500pcs   Prix : 12-15US$/PC

Item No.: ALU-90A3S
Basic Product Selling Point:
1. Super slim and New Design
2. LCD show
3. 7 Voltages Auto-Detection
4. 9 output pins
5. 1 USB port : 5V 1A
6. Max Power: 90W ( For Home use)
Specifications:
Input: AC100-240V
Output: 12V/15V/16V/18V/19V/20V/24V (MAX: 4.5A 90W)
USB port : 5V 1A
9 Output pins:
U1 12V(4.8*1.7mm)
U2 15V(6.3*3.0mm)
U3 16V(5.5*2.5mm)
U4 16V(6.6*4.4mm)
U5 18.5V4.8*1.7mm)
U6 19V(5.5*2.5mm)
U7 19V(5.5*3.0mm)
U8 19V(5.5*2.1mm)
U9 19.5V(6.5*4.4mm)
Quality Contral:
please note that our adapters are high quality with full power:
multi-protection: over-current;over-temperature;over-voltage;short-circuit prevention;
and disturbing- prevention, also with SMT tag mounting on the PCB,and also assemble insulating and shielding.
1. 12 months Warranty, and extra one month warranty
2. Defective percentage contral within 0.3%-0.5%
3. Every of our adapters have to go through the 3-5 hours aging test here before delivery.
Reference Packing Information:
Gross Weight：0.5KG
Net Weight: 0.44KG
Blister Packing: 260mm*70mm*78mm
Product Size: 155mm73mm19mm
Electrical characteristics:
Input:
No load power consumption: 0.5W at 115/230V AC
Voltage range: 90 to 264V AC
Rated frequency: 50/60Hz
Frequency range: 47 to 63Hz
Efficiency: 85% (minimum)
Output:
Line regulation: ±1%
Load regulation: ±5%
Over-shoot: 10% (maximum)
Ripple and noise: 1% (maximum)
Rising time: 20 minutes at 115V AC
Hold up time: 8 minutes at 230V AC
Protection: OCP, OVP, SCP and OPP
Dielectric withstand voltage: 3kV, 5mA, 60 seconds
Leakage current: 0.25mA at 230V AC
Operating temperature: 0 to 45°C
Storage temperature: 0 to 60°C
Operating humidity: 10 to 90% RH (non-condensing)
Storage humidity: 5 to 95% RH (non-condensing)
Localisation : The 7th floor, Shuiwei Village, Minzhi Street Longhua Dist, Shenzhen,PRC , 518109 LongHua,
Personne à contacter : Lighting Ren, 86 755 88870690
