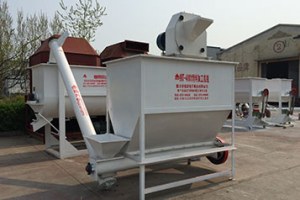

9HT Series Horizontal Powder Feed Unit
For more information, please contact me
The unit is suitable for large and mediumsized breeding companies and feed mills
Features
The unit is low energy conveyor for raw material feeding, high crushing efficiency, ribbon mixer for mixing,
high mixing evenness, short mixing time .The unit can be continuous operation and high yield.
Characristic of feed animal grinder and mixer:
This mixer machine posses lower consption,less area of occupancy,easily to loading and discharging,but long mixing time,it has residual quality in the end os the bottom,generally used for small feed factory and complete feeding line.each batch of feed mixing need 15min.
Specifacation of animal feed grinder and mixer :
1.This kind of machine put the grinder underside, live link, reasonable process, compact instructure,very suitable for medium-sized cultivation companies and small-scale aquaculture feed processing plants.
2.From top to see the material poured the conic section to be promoted, so many times a cycle. stirring will be made for the door open, the mixture was unloaded. the mix of material. it takes about 15min.
3.Low Power consumption, occupy space and for loading and unloading, but a long time and place of back base footprint, usually used for food and food processing plant in the crew.
Product parameters
No.序号 | 配置 Equipment |
型号Mode | 功率Power(kw) | 型号Mode | 功率Power(k |
9HT2000 2-3t/ | 9HT4000 3-4t | ||||
1 | 粒料提升机 Screw Conveyor |
Φ160 | 1.5kw 380v 3 phase 50- |
Φ160 | 1.5kw 380v 3 phase 50-60hz |
2 | 粉碎机 Hammer mill |
11*20 | 11kw 380v 3 phase 50- |
15*20 | 15kw 380v 3 phase 50-60hz |
3 | 待混仓 Bin |
500kg 2000*1100*1750m |
/ | 1000kg 2450*1200*2000m |
/ |
4 | 水平绞龙 Level screw |
Φ140*2.5 | 1.5kw 380v 3 phase 50- |
Φ160*2.5 | 1.5kw 380v 3 phase 50-60hz |
5 | 粉料提升机 Screw Conveyor |
Φ220 | 2.2kw 380v 3 phase 50- |
Φ220 | 2.2kw 380v 3 phase 50-60hz |
6 | 单轴双螺带混合机 Ribbon mixer |
SLHY | 7.5kw 380v 3 phase 50 |
SLHY2.5 | 15kw 380v 3 phase 50-60hz |
7 | 电控柜 Electric Control Cabinet |
HFDG | / | HFDG | / |
8 | 安装尺寸 Installation dimension |
2300*2600*2500m | 3400*2600*2600 |
