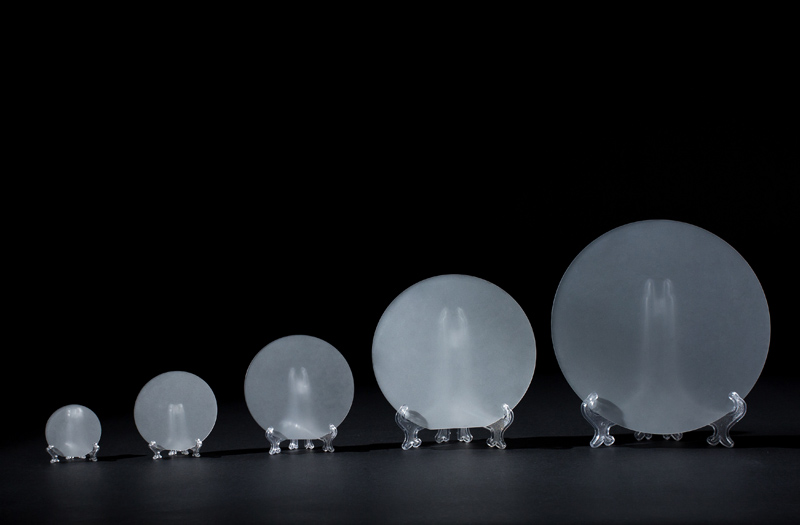

A-PLANE (11-20) SAPPHIRE WAFERS

A plane sapphire wafers have a uniform dielectric constant and highly insulating characteristic, so they are generally used for hybrid microelectronic applications. This orientation can also be used for the growth of high superconductors.

For example, TlBaCaCuO (TbBaCaCuO), Tl-2212, the hetero-epitaxial superconducting thin film is grown on an optical sapphire cerium oxide (CeO2) composite substrate. The availability of Angstrom level surface finishes allows for fine line interconnects of hybrid modules.

Specifications of A-Plane (11-20) Sapphire Wafers

Item

2-inch A-plane(11-20) 430μm Sapphire Wafers

Crystal Materials

99,999%, High Purity, Monocrystalline Al2O3

Grade

Prime, Epi-Ready

Surface Orientation

A-plane(11-20)

Diameter

50.8 mm +/- 0.1 mm

Thickness

430 μm +/- 25 μm

Primary Flat Orientation

C-plane(0001) +/- 0.2°

Primary Flat Length

16.0 mm +/- 1.0 mm

Single Side Polished

Front Surface

Epi-polished, Ra < 0.5 nm (by AFM)

(SSP)

Back Surface

Fine ground, Ra = 0.8 μm to 1.2 μm

Double Side Polished

Front Surface

Epi-polished, Ra < 0.5 nm (by AFM)

(DSP)

Back Surface

Epi-polished, Ra < 0.5 nm (by AFM)

TTV

< 10 μm

BOW

< 10 μm

WARP

< 10 μm

Cleaning / Packaging

Class 100 cleanroom cleaning and vacuum packaging,

25 pieces in one cassette packaging or single piece packaging.

Note: Custom sapphire wafers and substrates with any orientation and any thickness can be provided.

Our sapphire wafer cost you less and help you to achieve more, trust us and get a quote now.

If you want to know more about Sapphire substrate, please contact us.

Localisation : No. 49, Jiefang East Road, Shanyang District, JIAOZUO 454000, HENAN, CHINA, 454000 Jiaozuo,
Personne à contacter : Zhu Wind, +86 0391 393 3936
