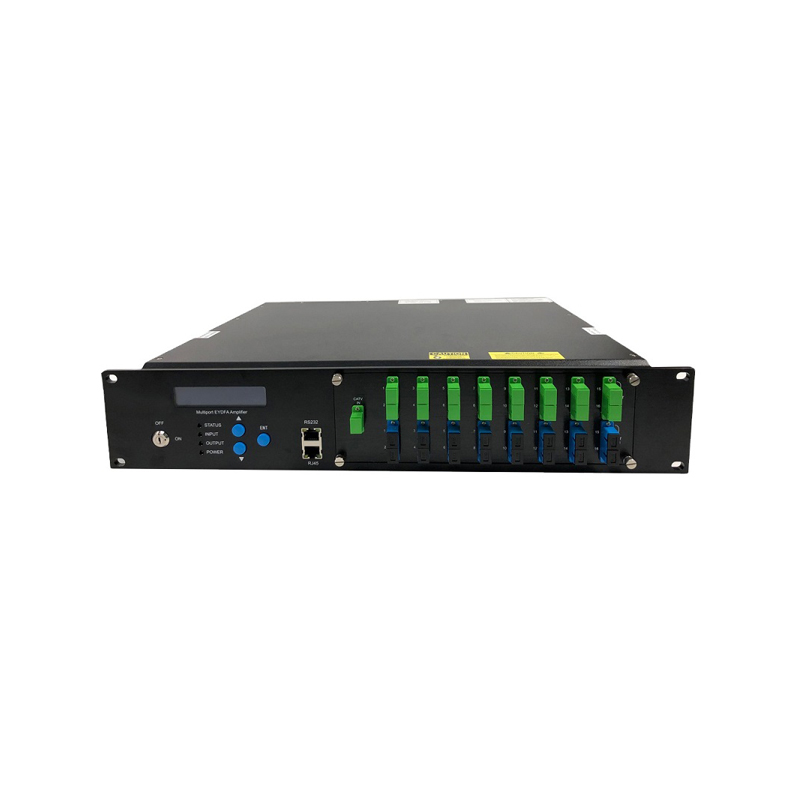

A Type 16 Port EDFA Amplifier Fiber Optic Amplifiers (EDFA)
It's a 1550nm 16 port fiber optic amplifier(EDFA) with 23dbm output power. All installation accessory such as AC or DC power supply, SNMP or switch can be included based on customer requirements.
The body of the EDFA 16 port is made of cold-rolled steel to protect the inside electric components with a gray or black color appearance.
As a professional EDFA 16 port manufacturer, TUOLIMA provides you with high-quality EDFA 16 port. You can check the details of our EDFA 16 port below. If you have any questions about EDFA 16 port, please consult us.
Specification of A Type 16 Port EDFA Amplifier Fiber Optic Amplifiers (EDFA)
|
Items |
Unit |
Parameters |
Remarks |
|
Output Power |
dBm |
33～41 |
16～128 Outputs |
|
Output Power |
mW |
2000～13000 |
16～128 Outputs |
|
Input Power |
dBm |
-3～10 |
|
|
Wavelength |
nm |
1540～1563 |
|
|
Output Power Stability |
dB |
<±0.2</span> |
|
|
Bias Oscillation Sensitivity |
dB |
<0.2</span> |
|
|
Bias Oscillation Dispersion |
PS |
<0.5</span> |
|
|
Optical Return Loss |
dB |
≥45 |
|
|
Fiber Connector |
|
FC/APC、SC/APC |
LC/APC |
|
Noise Ratio |
dB |
<5.0(0dBm optical input)</span> |
0dbm,@1550nm |
|
Connector |
|
RJ45 |
SNMP |
|
Communication interface |
|
RS232、RS485 |
|
|
Power Loss |
W |
50～100 |
Single |
|
Working Voltage |
V |
220VAC(90～265)、 |
-48Vdc |
|
Working Temp |
℃ |
-5～55 |
ATP case |
|
Storage Temp |
℃ |
-20～85 |
|
|
Size |
mm |
483(W)×280(D)×88(H) |
2RU |
Packing And Comments Of A Type 16 Port EDFA Amplifier Fiber Optic Amplifiers (EDFA)
|
Package contents |
EDFA device-1 unit; Keys for lock,-1 unit; power cable-1/2 set AC/DC; Laser Module Test Data-1pcs; |
|
Package dimensions(W*H*D) |
67*60*30cm |
|
Package material |
Standard carton for sea shipping or air express |
|
Weight |
13.3kgs |
We can offer kinds of fiber optic cable clamps for sale, if you have needs, please contact us.
