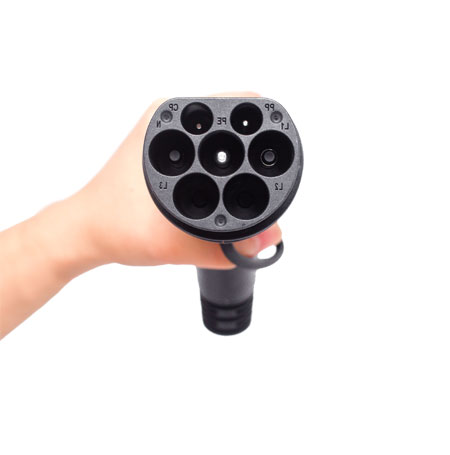

AC EV Charging Cable TYPE2
Mechanical Properties
Mechanical life: no-load plug>10000times
Impact resistance: be able to afford 1m drop and 2T vehicle run over pressure
Insertion and extraction force: <100N</span>
Electrical Performance
Rated current: 16A/20A/32A
Rated voltage: 250V/480V
Insulation resistance: >1000MΩ (DC500V)
Pins temperature rise: <50K</span>
Withstand voltage: 2500V
Contact impedance: 0.5mΩMax
Raw Material
Shell material: thermoplastics, flame retardant grade UL94-0
Pin: Copper alloy, silver+top thermoplastic
Environmental PerformanceTemperature:
-30℃~+50℃
EV Charging Cable Type 2 Features
Conforming to the provisions and requirements of IEC62196-2 2016 2-llb. The ev charge cable type 2 can charge all EV manufactured in Europe and USA, correctly and effectively with high compatibility.
AG ELECTRICAL EV Public Charging Cable Type2 acquires all safety and production certificates in electrical filed,ISO9001, ISO 14001, OHSAS 18001, TUV(Rheinland)/IEC 62196&EN50620.
Product Type |
TYPE2 EV Charging Cable |
Rated Current |
16A, 32A |
Rated Voltage |
250V, 480V |
Power |
3.7KW, 11KW,7.4KW,22KW |
Phase |
One Phase/Single Phase, Three Phase |
Cable Specification |
H07BZ5-F3X2.5mm²+2x0.5mm² |
H07BZ5-F5X2.5mm²+2x0.5mm² |
|
H07BZ5-F3X6mm²+2x0.5mm² |
|
H07BZ5-F5X6mm²+2x0.5mm² |
|
Length |
Regular 5 m,custom length accepted |
Color |
orange,blue,green,grey, white, custom color accepted |
Warranty |
12 months |
Certificate |
CE/TUV(Rheinland) |
Packaging Details |
Standard export wooden case or carton. Or as customer requirements |
Delivery Time (days) |
Within 15days, if quantity >100, to be negotiated |
If you want to know more kinds of ev charging products, please visit our website.
