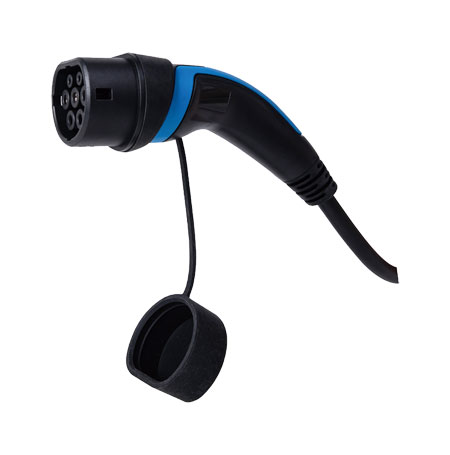

AC EV Charging Cable TYPE2

Mechanical Properties

Mechanical life: no-load plug>10000times

Impact resistance: be able to afford 1m drop and 2T vehicle run over pressure

Insertion and extraction force: <100N</span>

Electrical Performance

Rated current: 16A/20A/32A

Rated voltage: 250V/480V

Insulation resistance: >1000MΩ (DC500V)

Pins temperature rise: <50K</span>

Withstand voltage: 2500V

Contact impedance: 0.5mΩMax

Raw Material

Shell material: thermoplastics, flame retardant grade UL94-0

Pin: Copper alloy, silver+top thermoplastic

Environmental PerformanceTemperature:

-30℃~+50℃

Electric car charging cable type 2 Features

Conforming to the provisions and requirements of IEC62196-2 2016 2-llb. The ev cable type 2 can charge all EV manufactured in Europe and USA, correctly and effectively with high compatibility.

Using riveting pressure process with none screw with beautiful appearance. Hand-held design of the type 2 ev cable conforms to ergonomic principle, plug conveniently. This is one of the advantages of ev type 2 plug.

XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present conforms to the latest European Union standards.

Excellent internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.

Adopted double color coating technology, custom color accepted (regular color orange, blue, green, grey, white).

Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier.

Application of EV Charging Cable Type 2

Apply to Vehicle

Our type 2 3 phase cable can be applied to electric vehicle charging cable types such as Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series, for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV, for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV.

Application in Area

Commercial EV Charging/Workplace EV Charging, Hotels EV Charginh, Home/Residential EV Charging, Public EV charging.

EV Charging Cable Type 2 Parameter

EV type 2 charging cable is ideal for charging your electrical car Type2 to a maximum power of 22 KW. Type 2 32a cable and 16a cable are rated current.

it can charge all EV manufactured in Europe, correctly and effectively. It is compatible with all the charging stations type2.

This cable has one type of connector 2 to the charging pile and another TYPE 2 for electric vehicle.

If you plug our cable into a more powerful charging pile/station such as 22 KW, our cable will automatically apply the recharge power 22 KW.

Similarly, if you plug our cable into a lower power charging pile/station, the charging pile/station will also limit the charging power in this case. Our users don't need to worry about the power safe problem when you charging.

AG ELECTRICAL EV Charging cable Type2 acquires all safety and production certificates in electrical filed,ISO9001, ISO 14001, OHSAS 18001, TUV(Rheinland)/IEC 62196&EN50620.

Product Type

TYPE2 EV Charging Cable

Rated Current

16A, 32A

Rated Voltage

250V, 480V

Power

3.7KW, 11KW,7.4KW,22KW

Phase

One Phase/Single Phase, Three Phase

Cable Specification

H07BZ5-F3X2.5mm²+2x0.5mm²

H07BZ5-F5X2.5mm²+2x0.5mm²

H07BZ5-F3X6mm²+2x0.5mm²

H07BZ5-F5X6mm²+2x0.5mm²

Length

Regular 5 m,custom length accepted

Color

orange,blue,green,grey, white, custom color accepted

Warranty

12 months

Certificate

CE/TUV(Rheinland)

Packaging Details

Standard export wooden case or carton. Or as customer requirements

Delivery Time (days)

Within 15days, if quantity >100, to be negotiated

As one of the most reliable top ev charger manufacturers, we provide electric vehicle charging, ev car charger adapter, car charging connectors, type 2 charging connector, 3 phase type 2 cable and etc. Contact us to know more about us.

Localisation : KeyanErlu,Yizheng,Yangzhou,Jiangsu, 211400 Yangzhou,
Personne à contacter : Xu Felix , +18 5 12 52 55 57
