AC power surge protector
Quantité : 100000TQP- Prix : 51.2usd

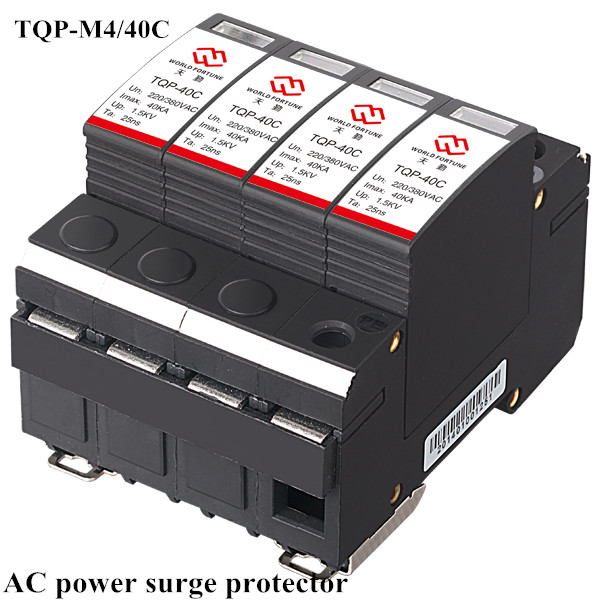

TQP-M4/40C
AC power surge protector
1. Product features
l Thermal disconnect device
l High current capacity, quick response
l Low residual voltage, free of leakage current
l Remote warning
l 40kA maximum surge current
l Easy installation with Din rail mounting
l Status indicators visually verify protection level
l Plug connectors for quick and easy connection or rewiring
2. Applications
l Protection of C class AC Power System
l Protection of power distribution system
l Protection of terminal devices
l Sensitive electronic equipment
l Telecom centers
l Automatic control centers
l Intelligent buildings
l Industrial enterprises
l Medical institutes
3. Technical data
|
Model |
TQP-M4/ 40C |
|
|
Nominal operating voltage Un |
220/380VAC |
|
|
Maximum continuous operating voltage Uc |
385VAC |
|
|
Nominal discharge current In (8/20μs) |
20KA |
|
|
Maximum discharge current Imax (8/20μs) |
40KA |
|
|
Protection level Up (8/20μs,20KA） |
≤1.5KV |
|
|
Response time Ta |
≤25ns |
|
|
Protection modes |
4: L1/L2/L3/N-PE 3+N: L1/L2/L3-N,N-PE 2: L/N-PE 1+N: L-N,N-PE |
|
|
Front circuit breaker |
63A |
|
|
Dimension |
90*72*65mm |
|
|
Weight |
250-1200g |
|
|
Mounting type |
DIN rail : 35mm |
|
|
Housing material |
Anti-flaming |
|
|
Index of protection |
IP20 |
|
|
Operating environment |
Temperature: -40—+85℃ humidity: ≤95% |
|
|
Remote control (optional) |
Normally closed, normally open or COM |
|
|
warranty |
Five-year warranty, three-year replacement |
|
|
Related items |
TQP-M3+N/40C, TQP-M2/40C, TQP-M1+N/40C, TQP-M4/20C, TQP-M3+N/20C, TQP-M2/20C, TQP-M1+N/20C |
|
