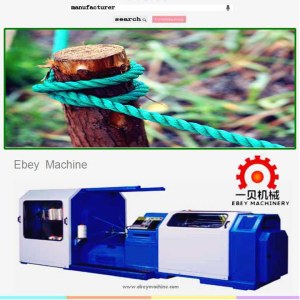

ACS-M44 Rope making machine
Quantité : 20 per mon Prix : USD10000~50000/set
Performance and Characteristics:
1.Natural or man-made fibre all can be used in this machine for making rope.
2.It can produce coils length from 440-4890m.
3.It can produce or process the three-strand and four-strand ropes.
4.The machine can do twisting into multi-strand and rope making in one time.
5.High production speed , extremely high output.
Main features:
Notice: Our Pay-off shaft can be adjusted into different type in order to suitable for different size and number Pay-off bobbins.
1.Hydraulic tension system
2.Increasing take-up capacity
3.Double-twist per rotary, two for one twisting
4.Constant tension for rewinding system
5.Lightweight rotating arm part
6.Frequency drive
7.PLC and touch-screen control
8.Low noise level
9.It's high-efficient and energy economical.
10.The structure and processing are designed terse ,friendly and can be used flexibly and conveniently with steady and safe in motion.
11.It's CNC control system which can adjust the strand making and rope twisting without stop machine, easy operation.
12.Pre-twist factor and rope twist can be adjusted and synchronized by three-motors under electrical control system.
Key features:
1.PLC COMBINED SYNCHRONIZATIONG CONTROL SYSTEM FOR TWIST
2.Graphic The system has friendly Graphic interface, safe and reliable communication,easy operating.
3.Digital twist can be set randomly.
4.With PLC computer system, the function is more stable, any parameters can be adjusted in touch screen without stop machine.
5.Segmented design with three independently driven:Strand making,rope twisting and drawing can be controlled separeately.
6.Adopting synchronous belt to convey, the transmission ratio will be much more accurate and very quiet. .
7.The circulation simulation program is combined module device.
8.Specialzed drawing dynamic structure applys Electronical brake system, easy operating , easy maintenance.
9.Adjustable rewinding design.
10.The rewinding length can be set automaticlly.
11.Graphic display, sound and light alarm when machine have fault and wrong operation .
Technical Parameters:
|
Rope range |
|
3-10mm |
|
|
Flyer speed |
|
0-max,1200 rpm, depending on pre-twist factor |
|
|
Rope Lay |
|
S and z |
|
|
Twists per minute |
|
2 x rope flyer speed |
|
|
Lay Length |
|
7.6-45mm/130-22 twists per meter; |
|
|
Pre-twist factor |
|
0.43-2.55 x rope twist |
|
|
Take-up, coiling head: |
|
Ø 420 mm, adjustable traverse max. 300 mm, barrel Ø135 mm |
|
|
Take-up, max. weight |
|
Polypropylene 20 kg |
|
|
Pay-off packages: |
|
M44/3 |
M44/4 |
|
3 x 3, max. Ø250 x 300 mm traverse |
4 x 3, max. Ø250 x 300 mm traverse |
||
|
3 x 1, max. Ø400 x 500 mm traverse |
4 x 1, max. Ø400 x 500 mm traverse |
||
|
3 x 6, max. Ø175 x 250 mm traverse |
4 x 6, max. Ø175 x 250 mm traverse |
||
