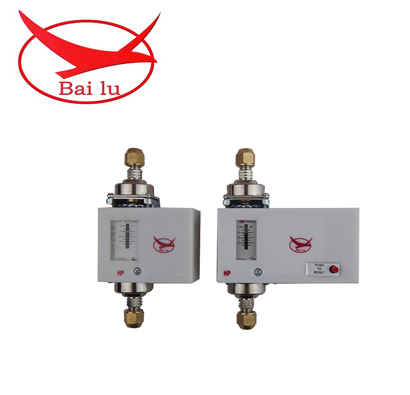

ADJUSTABLE PRESSURE CONTROL
Egret LP series pressure control can protect compressors in refrigeration and air-condition plant, and keep them from over-low pressure or over-high suction pressure.
LP series pressure control can start and stop refrigeration compressors and fans of air condensers. It can be used not only in fluoride refrigeration, but also in air and liquid.
LP series pressure control are fitted with 3 kind of changeover switch: a single pole double throw (SPDT), a double pole single throw (DPDT) and a double pole double throw (DPDT). The position of the switch is determined by the pressure control setting and the pressure at the connector.
Features of Adjustable Pressure Control
Small size, various installation sizes
The microswitch is quick to cut off, and its performance is stable and reliable
Suitable for R22, R407C, R290, R134a
Waterproof grade is IP45
Pressure and differential pressure can be adjusted according to demand
The pressure controller is mainly composed of shell, air box, micro switch, spring, scale plate and other components.
Electrical Data: A.C. 220V 16A A.C. 110V 24A
Medium: R12, R22, R134a, R142b, R407c
Medium Temperature: -20℃~+120℃
Ambient Temperature: -20℃~+50℃
Maximum working pressure: low pressure pressure controller ≤ 1.7MPa, high pressure pressure controller ≤ 3.0Mpa
Installation direction: vertical installation
