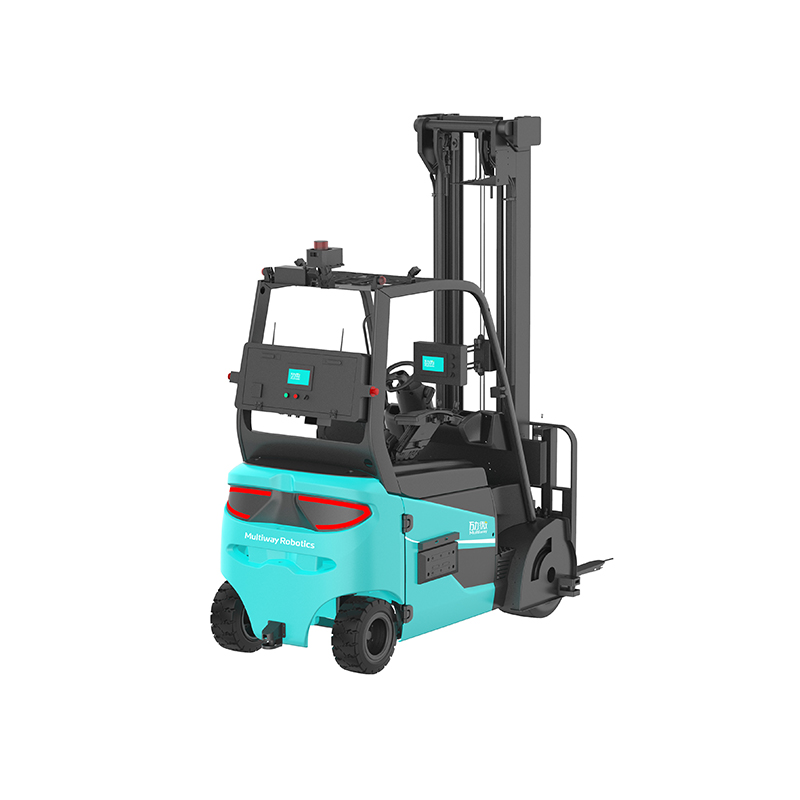

AGV Counterbalanced Truck
Prix : RMB 10w - 200w
Multiway Robotics is one of the advanced warehouse robot manufacturers of intelligent logistics solutions in the field. Headquartered in Shenzhen, China, with offices in Central China, East China, Southwest China, Northeast China and other places, and established overseas operation centers, sales business, operations and services cover various regions at home and abroad.
AGV Electric Counterbalance Truck MW-E30/35/40/45/50, the fork is outside the center line of the front wheel. The main feature is that in order to overcome the overturning moment generated by the goods, the forklift is equipped with a counterweight at the rear of the forklift, and the operation speed is relatively fast. It is widely used in factory workshops, warehouses, distribution centers and distribution centers stacking work.
The Specification Of MW-E30/35/40/45/50 AGV Counterbalanced Truck
tandard ○Option
|
Standard Models |
MW-E30 AGV Counterbalanced Truck |
|
|
Navigation |
Laser+reflector navigation |
● |
|
LiDAR SLAM navigation |
○ |
|
|
Hybrid navigation(LiDAR/Laser reflector+QR code/Magnetic nail/ceiling) |
○ |
|
|
Communication |
Wireless Wi-Fi |
● |
|
Optical communication |
○ |
|
|
5G |
○ |
|
|
Specifications |
Payload（kg） |
3000 |
|
Turning Radius（mm） |
2670 |
|
|
Lost load height （mm） |
5000【C=500】 |
|
|
Max lifting height（mm） |
6600 |
|
|
Max height payload（kg） |
1700 |
|
|
Min fork height（mm） |
50 |
|
|
Dimensions l/e/s（mm） |
1000x122x45 |
|
|
Outer fork width（mm） |
320—1000 |
|
|
Aisle width【Pallet dimensions 1m(along the fork)x1.2m】（mm） |
4800 |
|
|
Pallet posture recognition width【Pallet 1m(along the fork)x1.2m】（mm） |
5600 |
|
|
Weight（kg） |
5450 |
|
|
Dimensions LxWxH（mm） |
4120x1920x2300 |
|
|
Motion capability |
Motion |
Reach, back, turning |
|
Speed(Unloaded/Max loaded)（m/s） |
2.6 |
|
|
Accuracy（Bearing wheel center）（mm） |
±5 |
|
|
Endangle accuracy（°） |
±1 |
|
|
Ditch crossing capability（mm） |
≤30 |
|
|
Obstacle crossing capability（mm） |
≤10 |
|
|
Climbing capability（mm） |
≤3°（5%） |
|
|
Safety&protection |
Manual/Auto |
● |
|
Offset protection, Abnormal positioning protection |
● |
|
|
Components malfuction, communication fault protection |
● |
|
|
Bottom front LiDAR anti-collision（1/2pcs） |
● |
|
|
3D obstacles avoidance（Front/back 1/2pcs） |
● |
|
|
Fork front anti-collision（Light sensor） |
● |
|
|
Bumper strip（Truck head） |
○ |
|
|
Emergency button（At least 2pcs） |
● |
|
|
Sound（Speaker）alarm、Light alarm（3-color light 2pcs) |
● |
|
|
Width light（Front, left, right 3pcs） |
● |
|
|
HMI（7 inches） |
● |
|
|
Monitoring camera |
○ |
|
|
Fork function |
Cargo detection |
● |
|
Cargo posture detection |
● |
|
|
Anti-pressure detection(Light sensors) |
○ |
|
|
Cargo offset detection(Ultrasonic) |
○ |
|
|
Space detection(LiDAR point cloud) |
○ |
|
|
Auto fork distance adjust |
○ |
|
|
Lateral offset positioning |
● |
|
|
Inclination detection |
● |
|
|
Battery capability |
Recharging mode |
Manual/Auto |
|
Manual recharging(Plug direct) |
● |
|
|
Battery replacing（Standard） |
Hoisting |
|
|
Lateral replacing(less capability) |
— |
|
|
Battery type(Standard) |
LiFePO4 |
|
|
Voltage |
80V |
|
|
Standard Capability【Hoisting】 |
350Ah |
|
|
Standard Capability【Lateral】（Ah） |
— |
|
|
Operation time（h） |
4-5h |
|
|
Lifetime |
3000 times, 70% left |
|
|
Recharging station（Standard） |
80V200A |
|
|
Visual function |
Pallet posture recognition（3D camera） |
● |
|
Fork feeding side detection（3D camera） |
○ |
|
|
Weight detection（Weighing module） |
○ |
|
|
Cargo falling detection（3D camera×2pcs） |
○ |
|
|
Auto inventory（2D+3D cameras） |
○ |
|
|
Bar code/RFID recognition（Reader/RFID sensor） |
○ |
|
The Advantages Of MW-E30 AGV Counterbalanced Truck
Environment adaption: Laser navigation, no need to refit scenarios.
Intelligent running: Map building, path planning, auto recharging, self operating that meets various scenarios. Machine vision and comprehensive system enable unmanned forklift, improving flexibility.
The Features Of MW-E30 AGV Counterbalanced Truck
High accuracy, high efficiency: Primary positioning ±5mm, secondary positioning±2mm.
Max speed 2.6m/s, max payload 3000kg, max lifting height 6.6m. 7×24h full time running.
Intelligent, safe, easy to operate: Comprehensive self-detection capability.
Safe sensors + dual control system protection, 360°anti-collision, Light & Sound alarm protects.
Sustainable iteration, remote upgrading, friendly HMI.
