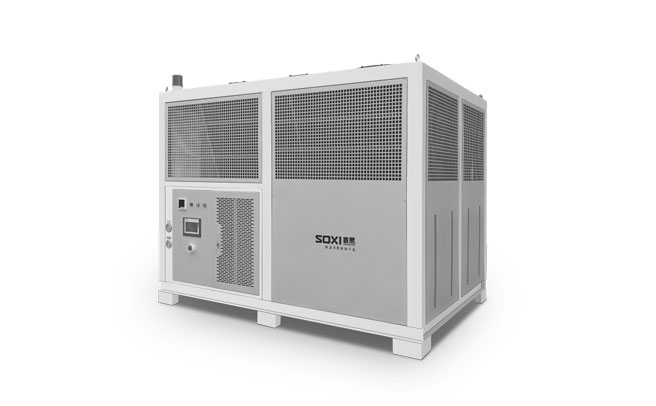

AIR COOLED SCREW CHILLER
Quantité : 1000
The air cooled screw chiller adopts a finned condenser, which has fast heat conduction and good heat dissipation effect without the need to provide cooling water. It can provide ice water at 5~35℃, and the low temperature type can be as low as 3℃ (the temperature difference does not exceed ±1℃), the compressor power ranges from 40HP to 240HP, and the cooling capacity can reach 88924~581360 Kcal/hr.
Specifications Of Air Cooled Screw Chiller
|
Standard specifications |
SCC-40AS |
SCC-50AS |
SCC-60AS |
SCC-70AS |
SCC-80AS |
SCC-100AS |
SCC-120AS |
||
|
Total power |
KW |
35 |
46 |
56 |
62 |
75 |
98 |
112 |
|
|
Maximum operating current |
A |
69 |
91 |
121 |
128 |
153 |
193 |
220 |
|
|
Cooling capacity |
Kcal/h |
88924 |
11174 |
128226 |
180600 |
213280 |
242520 |
290680 |
|
|
KW |
103.4 |
140 |
184 |
206 |
244 |
316 |
365 |
||
|
Refrigerant |
Model |
R22(R407C) |
|||||||
|
Charge |
Kg |
28 |
35 |
43 |
53 |
60 |
72 |
86 |
|
|
Way to control |
Externally balanced thermal expansion valve |
||||||||
|
Compressor |
Type |
Semi-closed screw type |
|||||||
|
Power |
KW |
29.6 |
39 |
49 |
53 |
65 |
80 |
90 |
|
|
Start method |
Y-Δ |
||||||||
|
Energy adjustment range |
% |
0-33%-66%-100% / 0-25%-50%-75%-100% |
|||||||
|
Evaporator |
Types |
Dry shell and tube type (plate exchange type) |
|||||||
|
Chilled water |
M3/h |
18 |
23 |
26 |
36 |
43 |
50 |
60 |
|
|
Inlet and outlet pipe diameter |
Inch |
3” |
3” |
3” |
4” |
4” |
4” |
5” |
|
|
Condenser |
Air-cooled high-efficiency copper pipe sleeve aluminum sheet |
||||||||
|
Fan |
Types |
M3/h |
High-power axial fan |
||||||
|
Power |
KW |
7 |
7 |
7 |
10 |
10 |
12 |
12 |
|
|
Cooling air volume |
M3/h |
40000 |
51000 |
63000 |
80000 |
91000 |
105000 |
122000 |
|
|
Electric power source Specification |
3P 380V 50HZ |
||||||||
|
Dimensions |
Long |
mm |
2200 |
2400 |
2400 |
3150 |
3150 |
4100 |
4100 |
|
Width |
mm |
1560 |
1760 |
2000 |
2140 |
2140 |
1890 |
20000 |
|
|
High |
mm |
2150 |
2180 |
2180 |
2200 |
2200 |
2200 |
2200 |
|
|
Unit weight |
KG |
1300 |
1620 |
1930 |
2260 |
2420 |
2860 |
3250 |
|
|
Running weight |
KG |
1390 |
1870 |
2210 |
2420 |
2680 |
3020 |
3460 |
|
Features Of Air Cooled Screw Chiller
Adopt imported compressor
The copper tube is welded without oxygen
Efficient evaporator and condenser, energy saving
The high-power equipment adopts multi-group compressor,
Automatically adjust start and stop as needed
Equipped with communication interface, can undertake future industry 4.0.
If you want to know more about air cooled screw chiller working principle, please visit our website.
As a plastic machine factory, we will do our best to provide more types of plastics machinery for sale, anything you need, please contact us.
