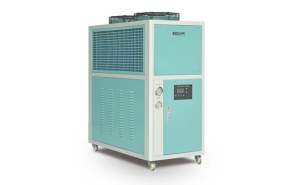

AIR COOLED WATER CHILLER
Quantité : 1000
The air cooled industrial chiller adopts a finned condenser, which has fast heat conduction and a good heat dissipation effect without the need to provide cooling water. It can provide ice water at 5~35℃, and the low-temperature type can be as low as 3℃ (the temperature difference does not exceed ±1℃), the compressor power is from 3HP to 50HP, and the cooling capacity can reach 8250~139400 Kcal/hr.
Specifications Of Chilled Water Air Conditioning System
|
Standard specifications |
SCB-03A |
SCB-05A |
SCB-08A |
SCB-10A |
SCB-15A |
SCB-20A |
SCB-30A |
SCB-40A |
SCB-50A |
||
|
Medium |
Water |
||||||||||
|
Medium temperature Range |
℃ |
7~25℃ |
|||||||||
|
Cooling capacity |
Kcal/h |
8250 |
11324 |
20540 |
28400 |
43100 |
58600 |
86200 |
117200 |
139400 |
|
|
W |
29000 |
38650 |
77300 |
97000 |
14200 |
199850 |
294400 |
399700 |
476000 |
||
|
Compressor |
Type |
Hermetic scroll type or piston |
|||||||||
|
Refrigerant |
R22/R407/R134/R410 |
||||||||||
|
Power |
KW |
2.2 |
3.3 |
6 |
10 |
11.25 |
15 |
22.5 |
40 |
37.5 |
|
|
Chilled |
Pump power |
0.37 |
0.37 |
0.75 |
0.75 |
1.5 |
1.5 |
3 |
5 |
5 |
|
|
water |
Pump pressure |
Mpa |
0.2 |
0.2 |
0.2 |
0.205 |
0.205 |
0.22 |
0.24 |
0.24 |
0.24 |
|
Flowrate |
L/Min |
50-100 |
50-100 |
100-200 |
100-200 |
160-320 |
160-320 |
250-500 |
630-1200 |
630-1200 |
|
|
Tank |
L |
65 |
65 |
140 |
220 |
380 |
500 |
520 |
630 |
800 |
|
|
In/Out pipe size |
G1/4”X 4 |
G1/4”X 4 |
|
G1-1/2” |
G2” |
G1/4”X 4 |
G1/4”X 4 |
G1” |
G1-1/2” |
||
|
Cooling fan |
Air volume |
M3/h |
2390 |
3900 |
7800 |
9200 |
12600 |
18900 |
23400 |
44000 |
39000 |
|
Fan diameter |
mm |
400X1 |
350X2 |
450X2 |
450X2 |
500X3 |
550X3 |
630X3 |
600X6 |
600X6 |
|
|
Electric power source Specification |
3P 380V 50HZ |
|
|||||||||
|
Current |
A |
6 |
9 |
12 |
15 |
27 |
38 |
58 |
72 |
95 |
|
|
Dimensions (LXWXH) |
mm |
1170X600X1130 |
1420X800X1500 |
2150X850X1800 |
2300X1050X1760 |
2600X1050X1800 |
2600X1780X1845 |
2600X1780X1845 |
|||
|
Weight |
KG |
155 |
155 |
320 |
420 |
95 |
95 |
125 |
135 |
150 |
|
Features Of Air Cooled Water Chiller
Adopt imported compressor
The copper tube is welded without oxygen
Efficient evaporator and condenser, energy saving
The high-power equipment adopts multi-group compressor,
Automatically adjust start and stop as needed
Equipped with communication interface, can undertake future industry 4.0.
As one of air cooled water chiller manufacturers and air cooled water chiller suppliers, we can offer kinds of industrial air chillers for sale, if you have needs, please contact us.
Now the price of auxiliary equipment for plastics processing is affordable, if you have needs to buy a high quality plastic processing machine, please leave us a message.
